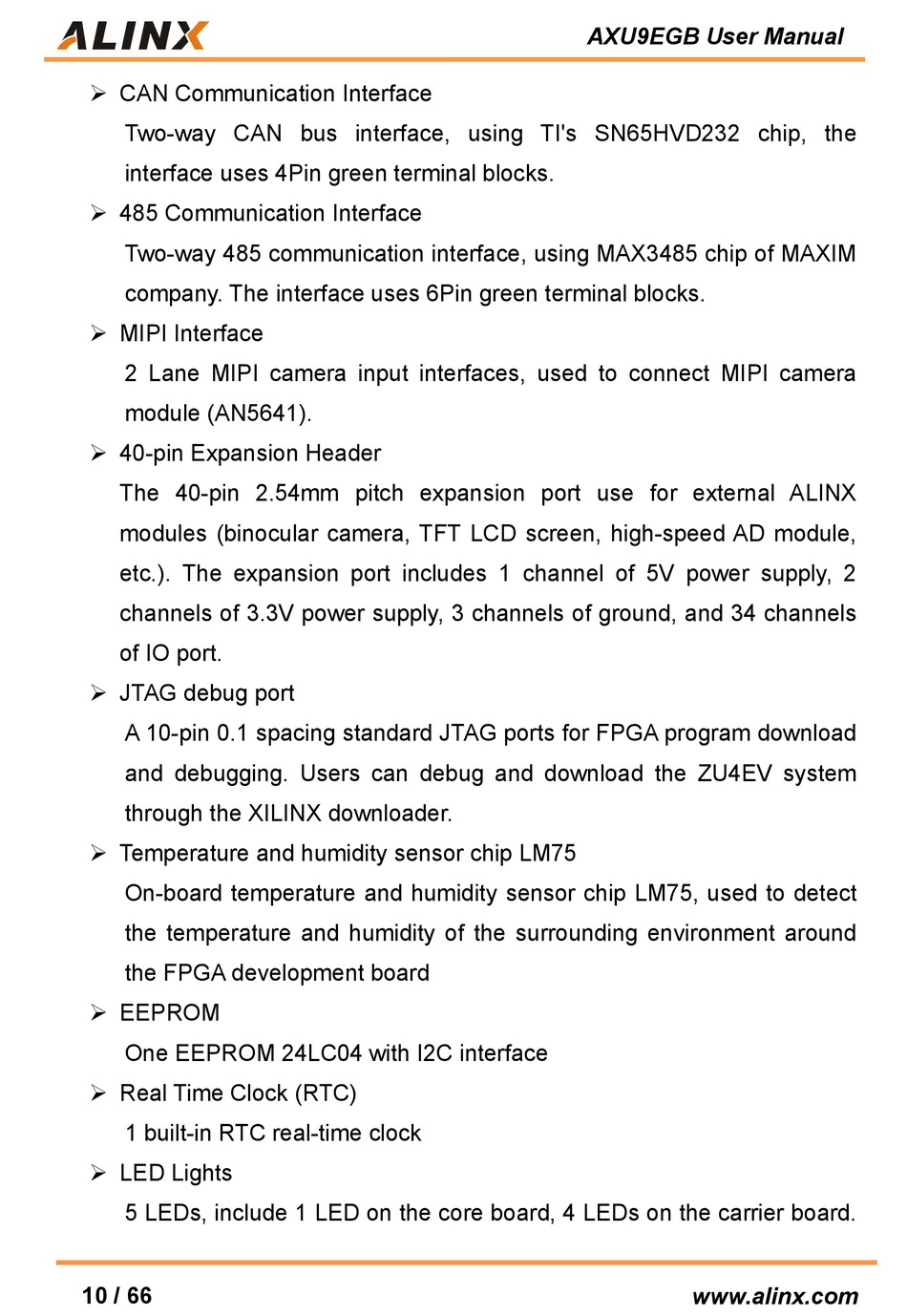

 CAN Communication Interface
Two-way CAN bus interface, using TI's SN65HVD232 chip, the
interface uses 4Pin green terminal blocks.
 485 Communication Interface
Two-way 485 communication interface, using MAX3485 chip of MAXIM
company. The interface uses 6Pin green terminal blocks.
 MIPI Interface
2 Lane MIPI camera input interfaces, used to connect MIPI camera
module (AN5641).
 40-pin Expansion Header
The 40-pin 2.54mm pitch expansion port use for external ALINX
modules (binocular camera, TFT LCD screen, high-speed AD module,
etc.). The expansion port includes 1 channel of 5V power supply, 2
channels of 3.3V power supply, 3 channels of ground, and 34 channels
of IO port.
 JTAG debug port
A 10-pin 0.1 spacing standard JTAG ports for FPGA program download
and debugging. Users can debug and download the ZU4EV system
through the XILINX downloader.
 Temperature and humidity sensor chip LM75
On-board temperature and humidity sensor chip LM75, used to detect
the temperature and humidity of the surrounding environment around
the FPGA development board
 EEPROM
One EEPROM 24LC04 with I2C interface
 Real Time Clock (RTC)
1 built-in RTC real-time clock
 LED Lights
5 LEDs, include 1 LED on the core board, 4 LEDs on the carrier board.
