Part 2.8: ACU9EG Core Board Size Dimension

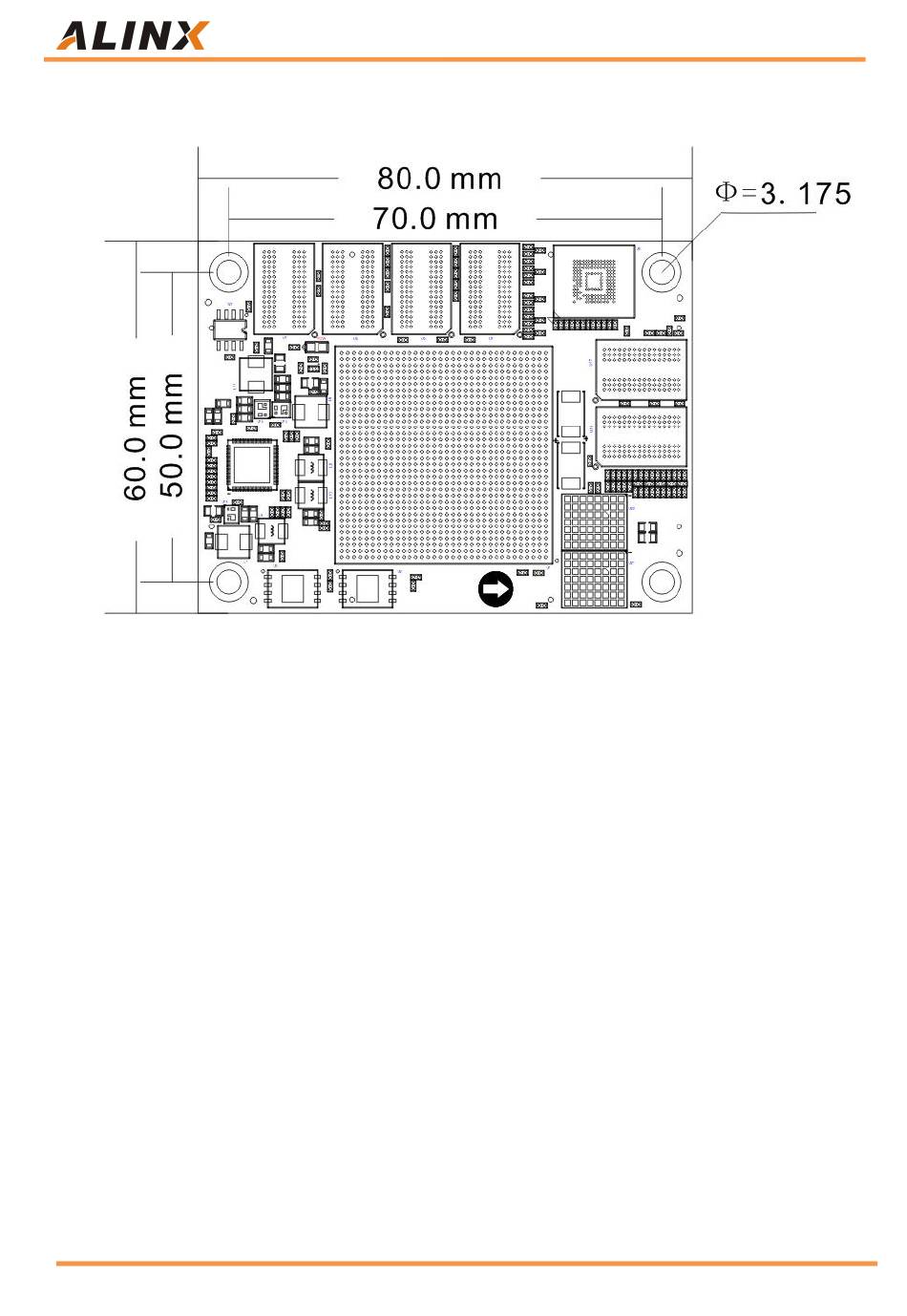

Figure 2-8-1: ACU9EG Core Board Size Dimension

Part 2.9: Board to Board Connectors pin assignment

The core board has a total of four high-speed expansion ports. It uses four
120-pin inter-board connectors (J29/J30/J31/J32) to connect to the carrier
board. The connectors used is Panasonic AXK5A2137YG, and the
corresponding connector model in the carrier board is Panasonic
AXK6A2337YG.
J29 connector
J29 connects the IO of BANK66, BANK67 and the GTX signal of BANK228;
the level standard of BANK66, 67 is determined by the VCCO_66 and
VCCO_67 power supply of the carrier board, the carrier board provides +1.8V
by default.
Pin assignment of board to board connector J29
