SFP ZYNQ pin assignment:
Signal Name ZYNQ Pin Name
SFP1_TX_N 228_TX2_N
SFP1_TX_P 228_TX2_P
SFP1_RX_N 228_RX2_N
SFP1_RX_P 228_RX2_P
SFP2_TX_N 228_TX0_N
SFP2_TX_P 228_TX0_P
SFP2_RX_N 228_RX0_N
SFP2_RX_P 228_RX0_P
SFP1_TX_DIS B50_L8_N
SFP2_TX_DIS B50_L7_N
SFP1_LOSS B50_L8_P
SFP2_LOSS B50_L7_P
49 / 66

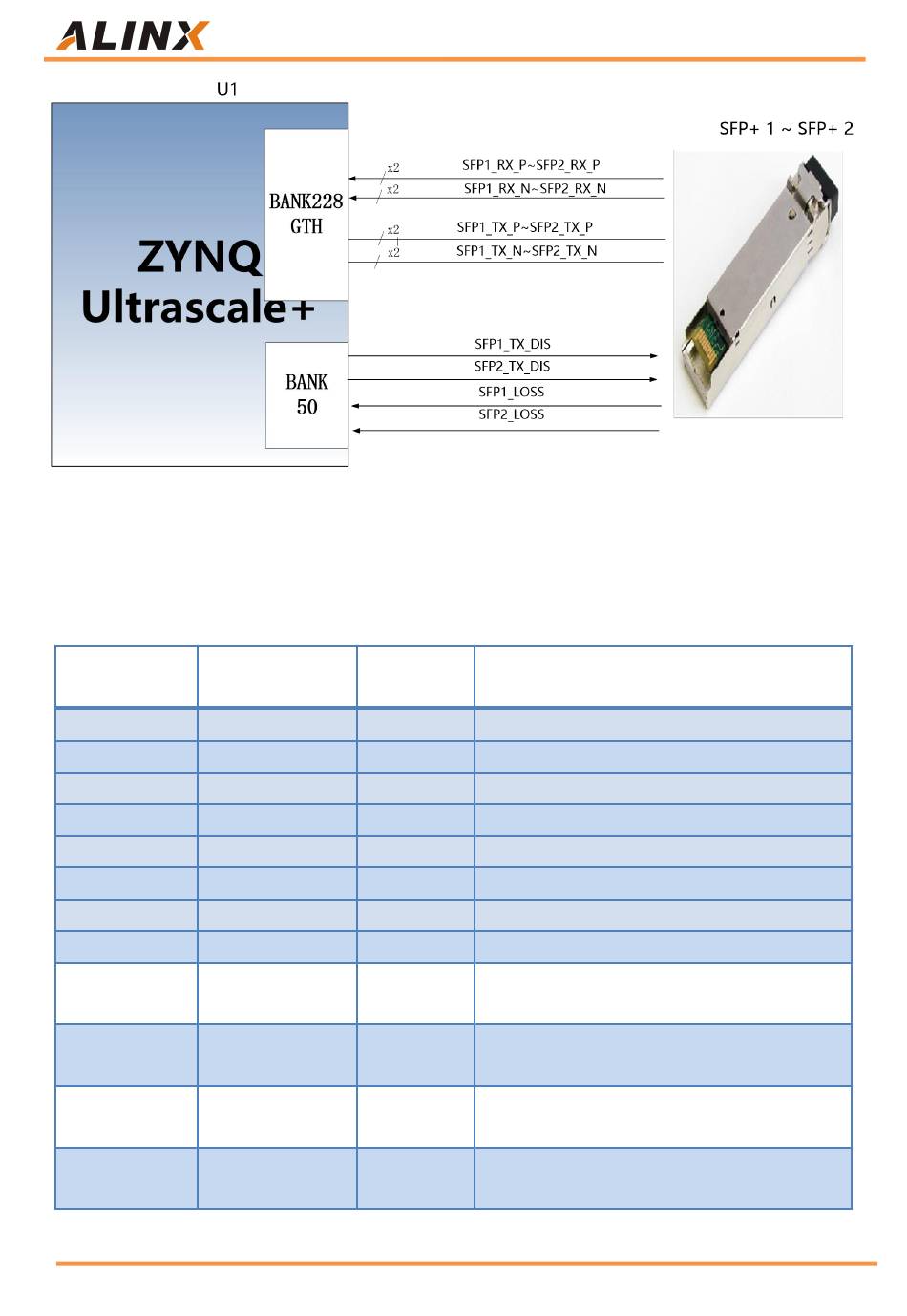

Figure 3-8-1: SFP Schematic
ZYNQ Pin
Number
N3
N4
M1
M2
R3
R4
T1
T2
G13
H12
H13
J12
AXU9EGB User Manual
Description
Optical Module 1 Data Transmit Negative
Optical Module 1 Data Transmit Positive
Optical Module 1 Data Receive Negative
Optical Module 1 Data Receive Positive
Optical Module 2 Data Transmit Negative
Optical Module 2 Data Transmit Positive
Optical Module 2 Data Receive Negative
Optical Module 2 Data Receive Positive
Optical Module 1 Light Emission Prohibited,
High Level (Positive) Enable
Optical Module 2 Light Emission Prohibited,
High Level (Positive) Enable
Optical Module 1 Receive LOSS
Detect Signal
Optical Module 2 Receive LOSS
Detect Signal
