Replacing the water traps

Water traps on the front side

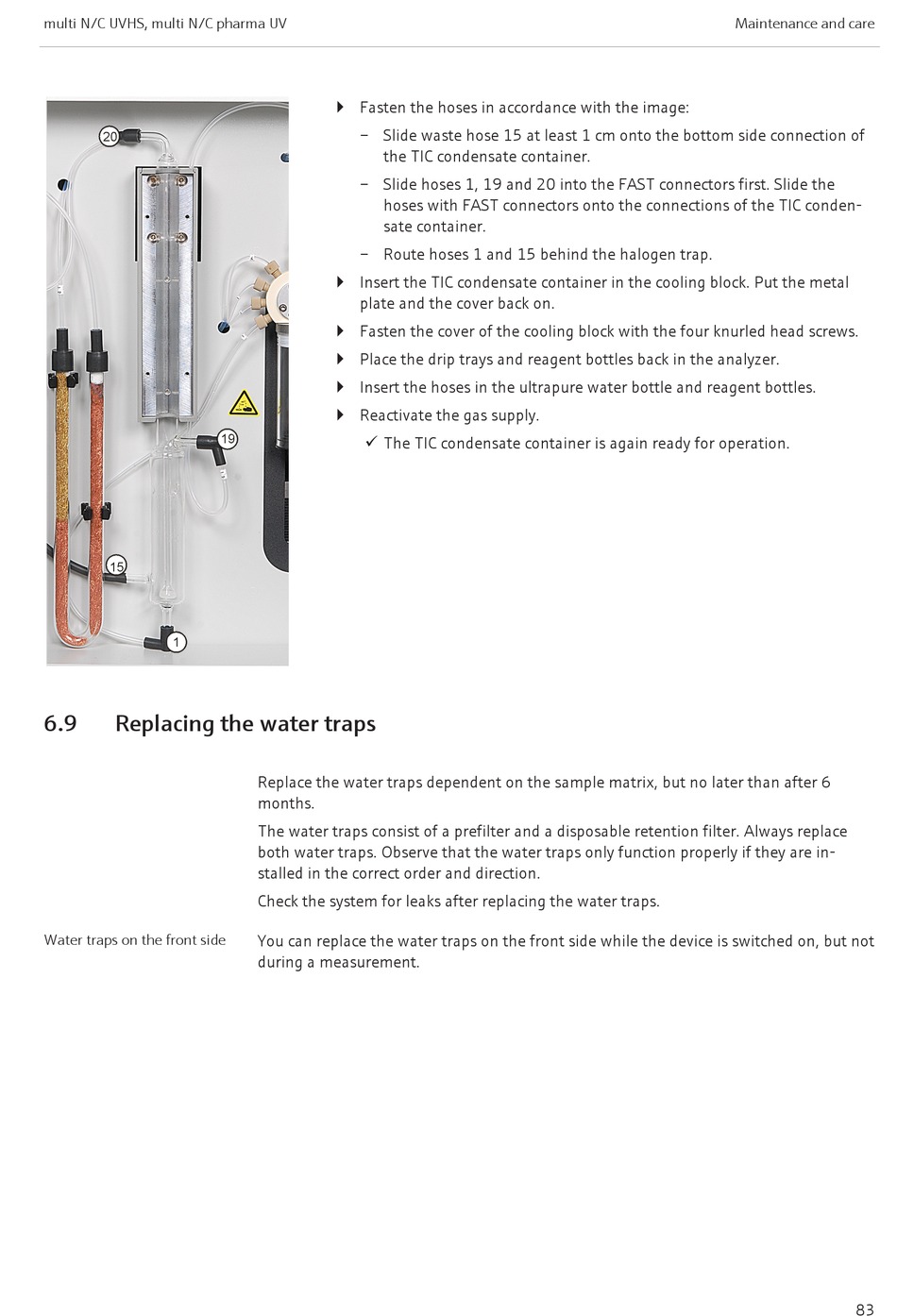

} Fasten the hoses in accordance with the image:
– Slide waste hose 15 at least 1 cm onto the bottom side connection of
the TIC condensate container.
– Slide hoses 1, 19 and 20 into the FAST connectors first. Slide the
hoses with FAST connectors onto the connections of the TIC conden-
sate container.
– Route hoses 1 and 15 behind the halogen trap.
} Insert the TIC condensate container in the cooling block. Put the metal
plate and the cover back on.
} Fasten the cover of the cooling block with the four knurled head screws.
} Place the drip trays and reagent bottles back in the analyzer.
} Insert the hoses in the ultrapure water bottle and reagent bottles.
} Reactivate the gas supply.
ü The TIC condensate container is again ready for operation.
Replace the water traps dependent on the sample matrix, but no later than after 6
months.
The water traps consist of a prefilter and a disposable retention filter. Always replace
both water traps. Observe that the water traps only function properly if they are in-
stalled in the correct order and direction.
Check the system for leaks after replacing the water traps.
You can replace the water traps on the front side while the device is switched on, but not
during a measurement.
