Preparing The As Vario Autosampler For Transport; Figure 58 Securing The Autosampler For Transport - Endress+Hauser analytikjena multi N/C UVHS Operating Manual

Transport and storage
8.1.2

Preparing the AS vario autosampler for transport

98
} Close the front doors of the analyzer.
} Carefully package the accessories. Ensure that the glass components are packed to
prevent breakage.
} Package the analyzer and the accessories in the original packaging.
ü The analyzer is securely packed for transport.
See also
2 Maintenance and care [} 70]
NOTICE
Risk of device damage when transporting without transport locks
During transport without transport locks, the device can become damaged.
¡ Always apply a transport lock before transport.

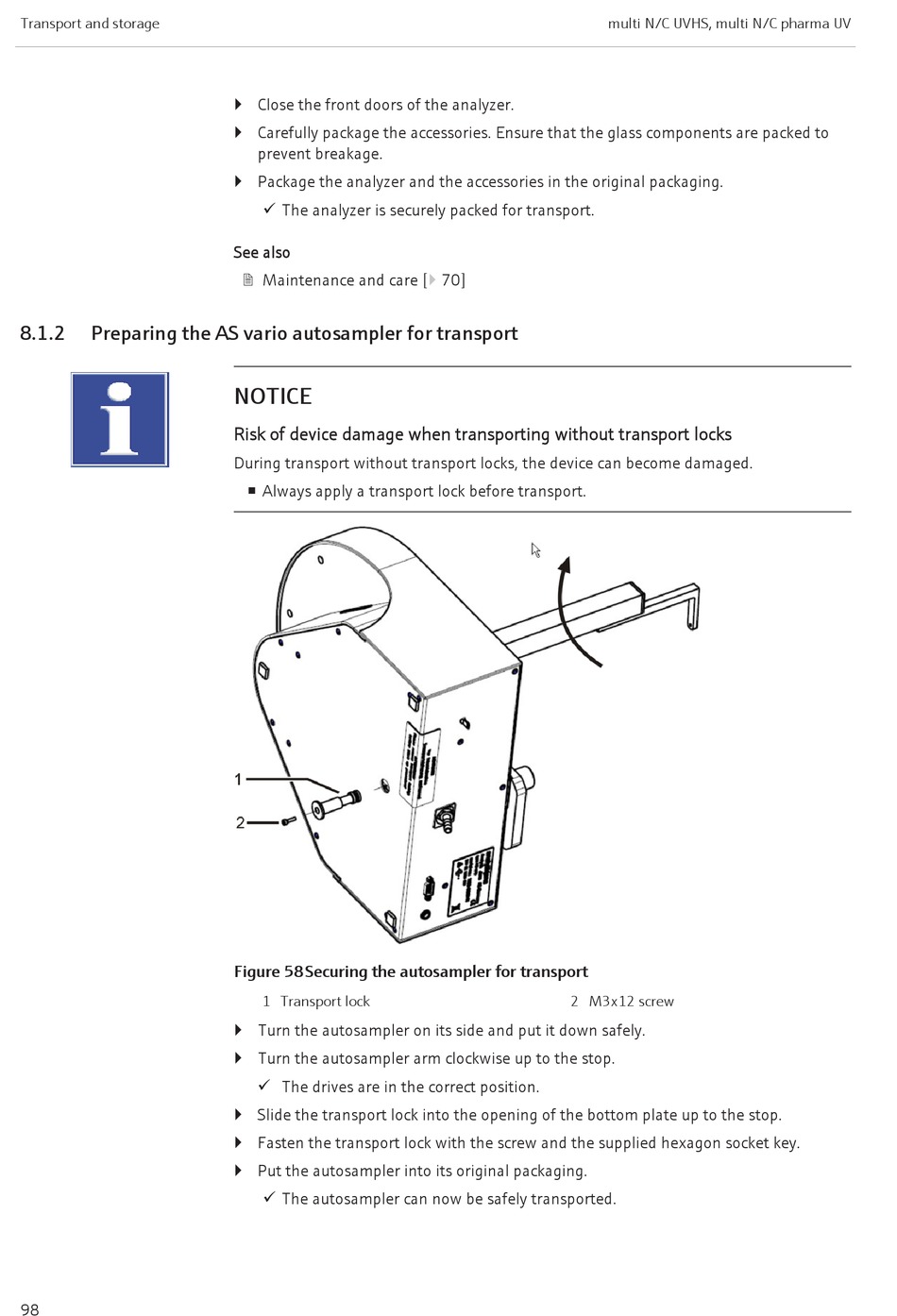

Figure 58Securing the autosampler for transport
1 Transport lock
} Turn the autosampler on its side and put it down safely.
} Turn the autosampler arm clockwise up to the stop.
ü The drives are in the correct position.
} Slide the transport lock into the opening of the bottom plate up to the stop.
} Fasten the transport lock with the screw and the supplied hexagon socket key.
} Put the autosampler into its original packaging.
ü The autosampler can now be safely transported.
multi N/C UVHS, multi N/C pharma UV
2 M3x12 screw
