Installation and commissioning
AS 21hp autosampler
40
The autosampler is equipped with a rotatable sample tray for 21 sample vessels with a
volume of 50 ml. Optionally, sample values with a volume of 40 ml can be used.
7
6
5
4
3

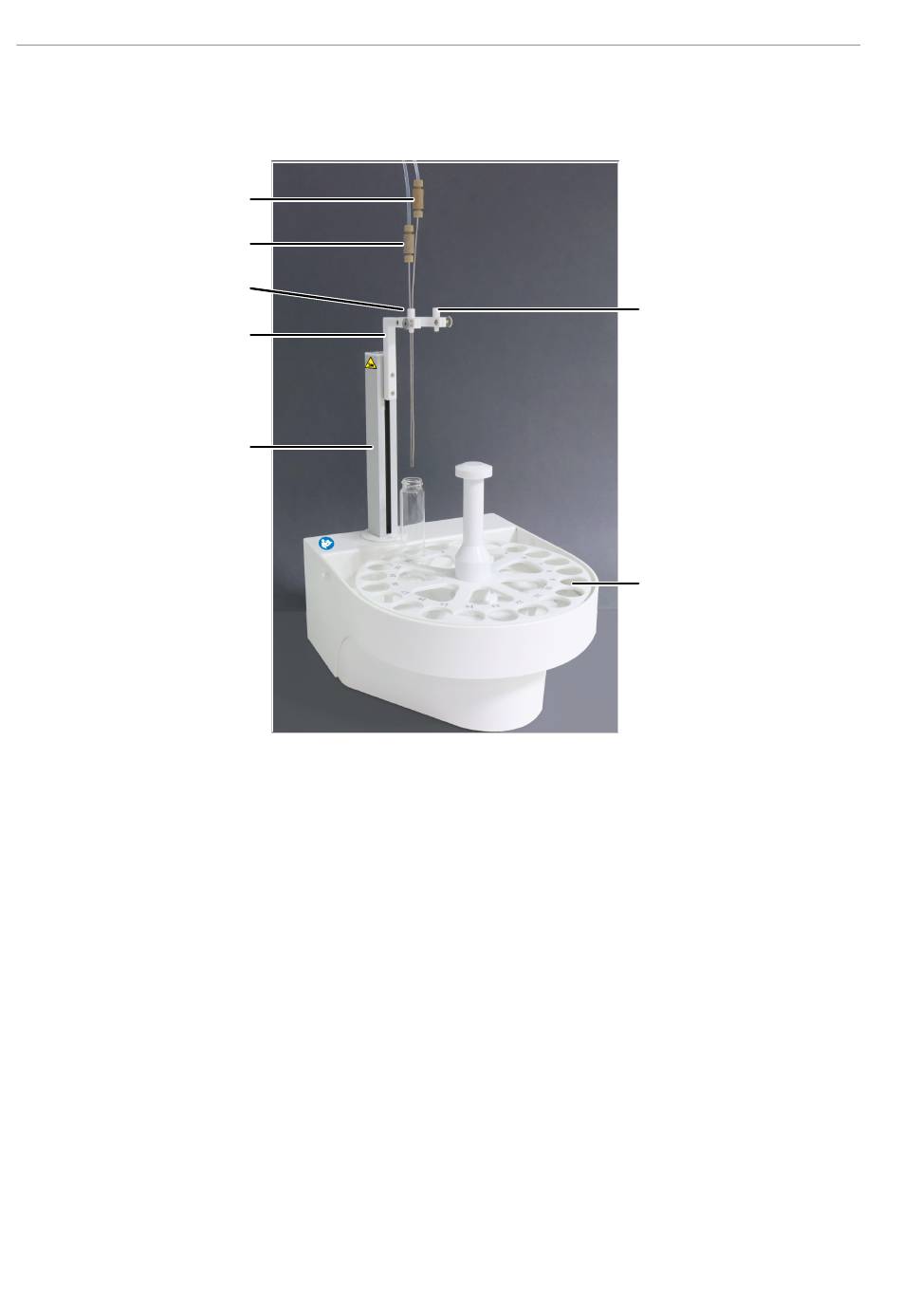

Figure 18AS 21hp autosampler
1 Sleeve (with 1 bore) as a purging canula
holder
3 Autosampler arm with Z-drive
5 Sleeve (with 2 bores)
7 Purging canula with screw connection
The autosampler can be equipped with two canulas. This allows the autosampler to au-
tomatically purge samples for NPOC analysis.
The autosampler comes with a canula holder for two canulas. The holder keeps the two
canulas at a distance. This allows the autosampler to aspirate a sample and to purge a
second sample in parallel (parallel purging). During NPOC analysis, the autosampler
can also work sequentially (option).
multi N/C UVHS, multi N/C pharma UV
1
2
2 Sample tray (rotatable, 21 samples)
4 Canula holder
6 Sample intake canula with screw con-
nection
