multi N/C UVHS, multi N/C pharma UV
3

Function and design

3.1

Layout

The analyzer is a compact laboratory device with permanently installed main compo-
nents. Further accessories and reagents are required for the measurement process.
The control of the analyzer and the analysis of the measurement data is performed via
the multiWin software installed on an external PC.
All components of the analyzer operated or serviced by the user can be reached via the
two doors on the front.
The analyzer consists of the following main components:
Sample supply system
¡
Gas box and hose system
¡
UV reactor with control gear
¡
¡ Measuring gas drying and cleaning
¡ Detector
¡ Indicator and control elements, connections
Electronics
¡
Accessories
¡

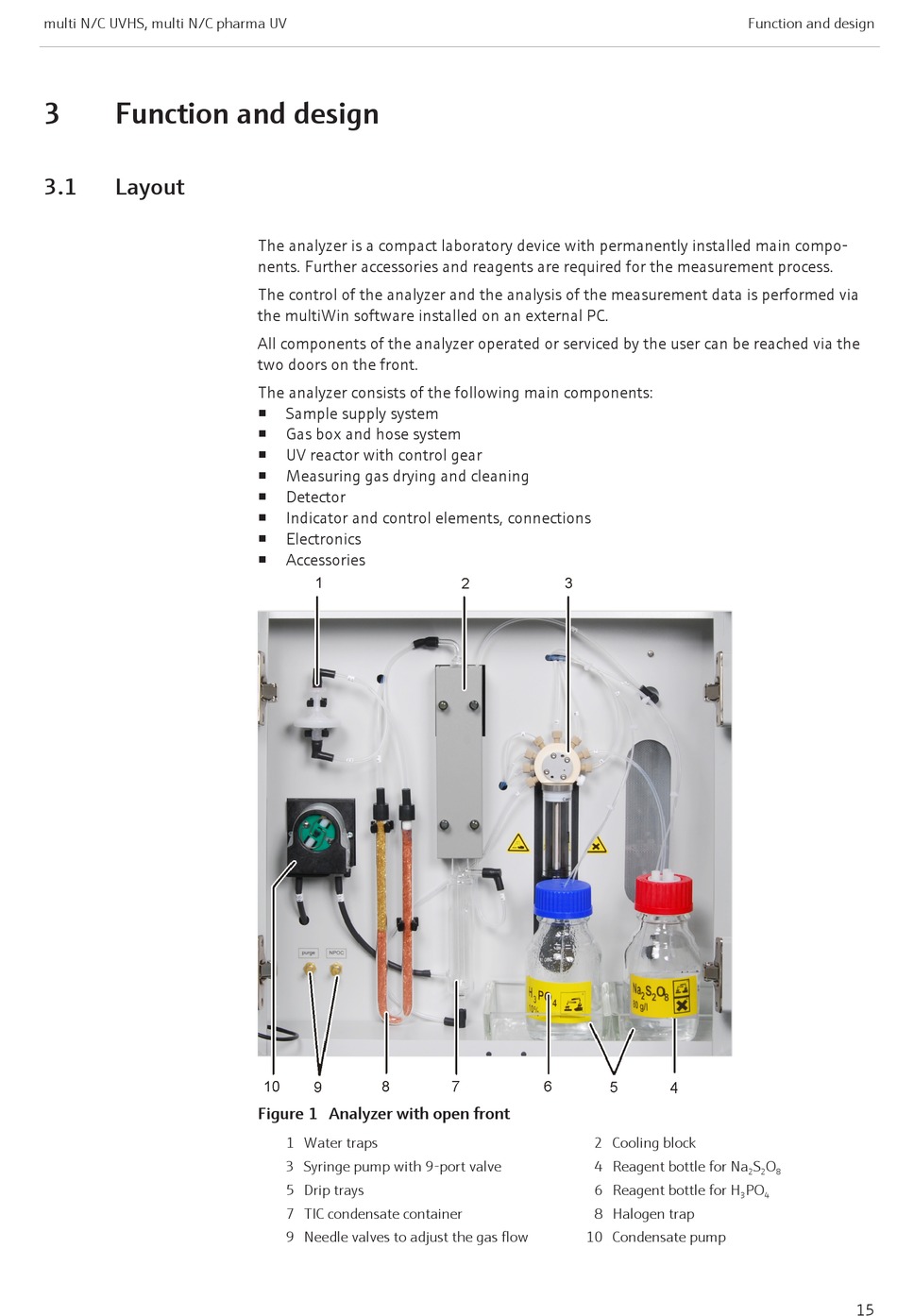

Figure 1 Analyzer with open front
1 Water traps
3 Syringe pump with 9-port valve
5 Drip trays
7 TIC condensate container
9 Needle valves to adjust the gas flow
Function and design
2 Cooling block
4 Reagent bottle for Na S
2
6 Reagent bottle for H PO
3
8 Halogen trap
10 Condensate pump
O
2 8
4
15
