multi N/C UVHS, multi N/C pharma UV
4.1.3

Power supply

4.1.4

Gas supply

4.2

Unpacking and setting up the device

Component
EPA Sampler
HT 1300 solids module
Manual TIC solids module

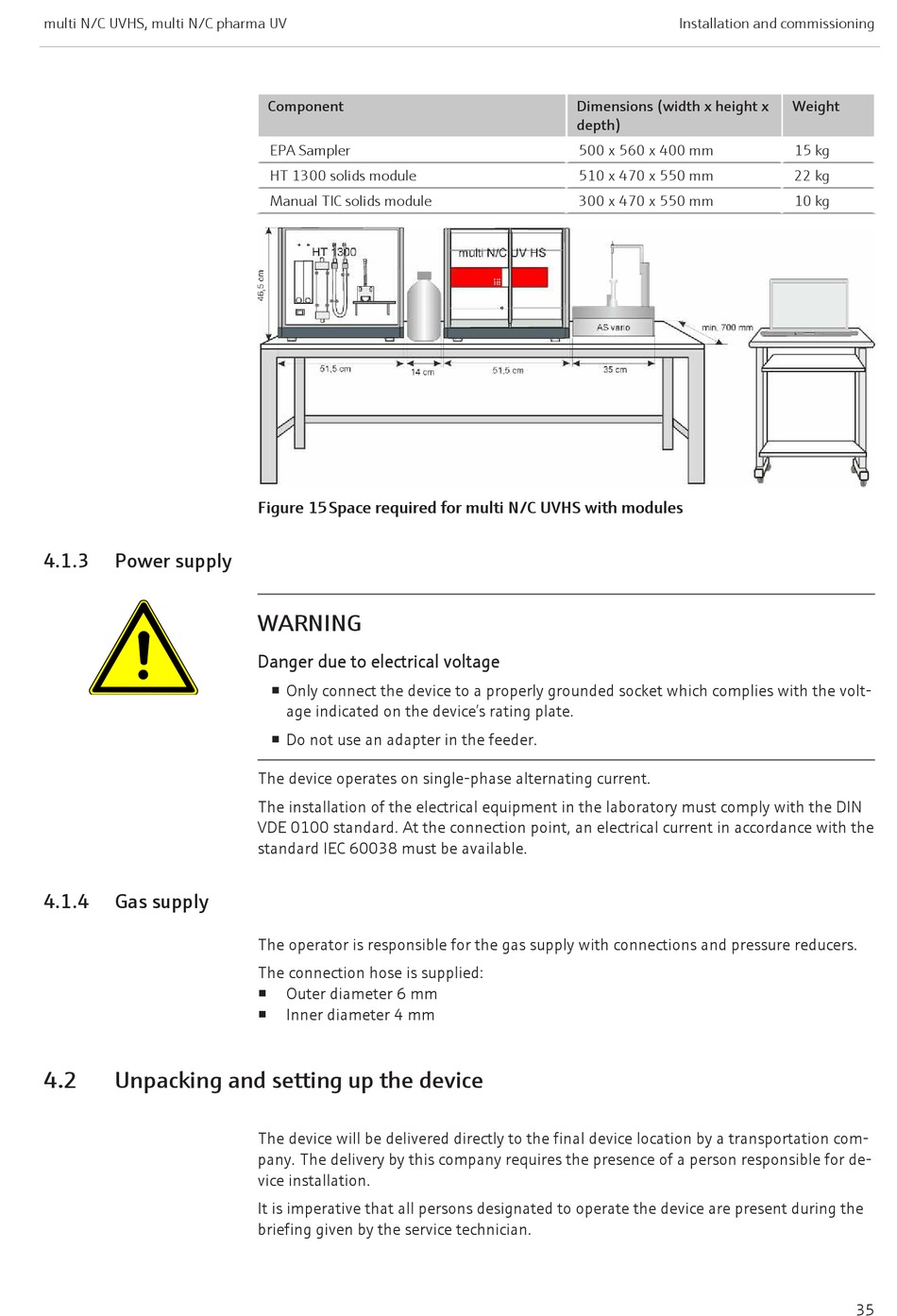

Figure 15Space required for multi N/C UVHS with modules
WARNING
Danger due to electrical voltage
¡ Only connect the device to a properly grounded socket which complies with the volt-
age indicated on the device's rating plate.
¡ Do not use an adapter in the feeder.
The device operates on single-phase alternating current.
The installation of the electrical equipment in the laboratory must comply with the DIN
VDE 0100 standard. At the connection point, an electrical current in accordance with the
standard IEC 60038 must be available.
The operator is responsible for the gas supply with connections and pressure reducers.
The connection hose is supplied:
¡ Outer diameter 6 mm
Inner diameter 4 mm
¡
The device will be delivered directly to the final device location by a transportation com-
pany. The delivery by this company requires the presence of a person responsible for de-
vice installation.
It is imperative that all persons designated to operate the device are present during the
briefing given by the service technician.
Installation and commissioning
Dimensions (width x height x
depth)
500 x 560 x 400 mm
510 x 470 x 550 mm
300 x 470 x 550 mm
Weight
15 kg
22 kg
10 kg
35
