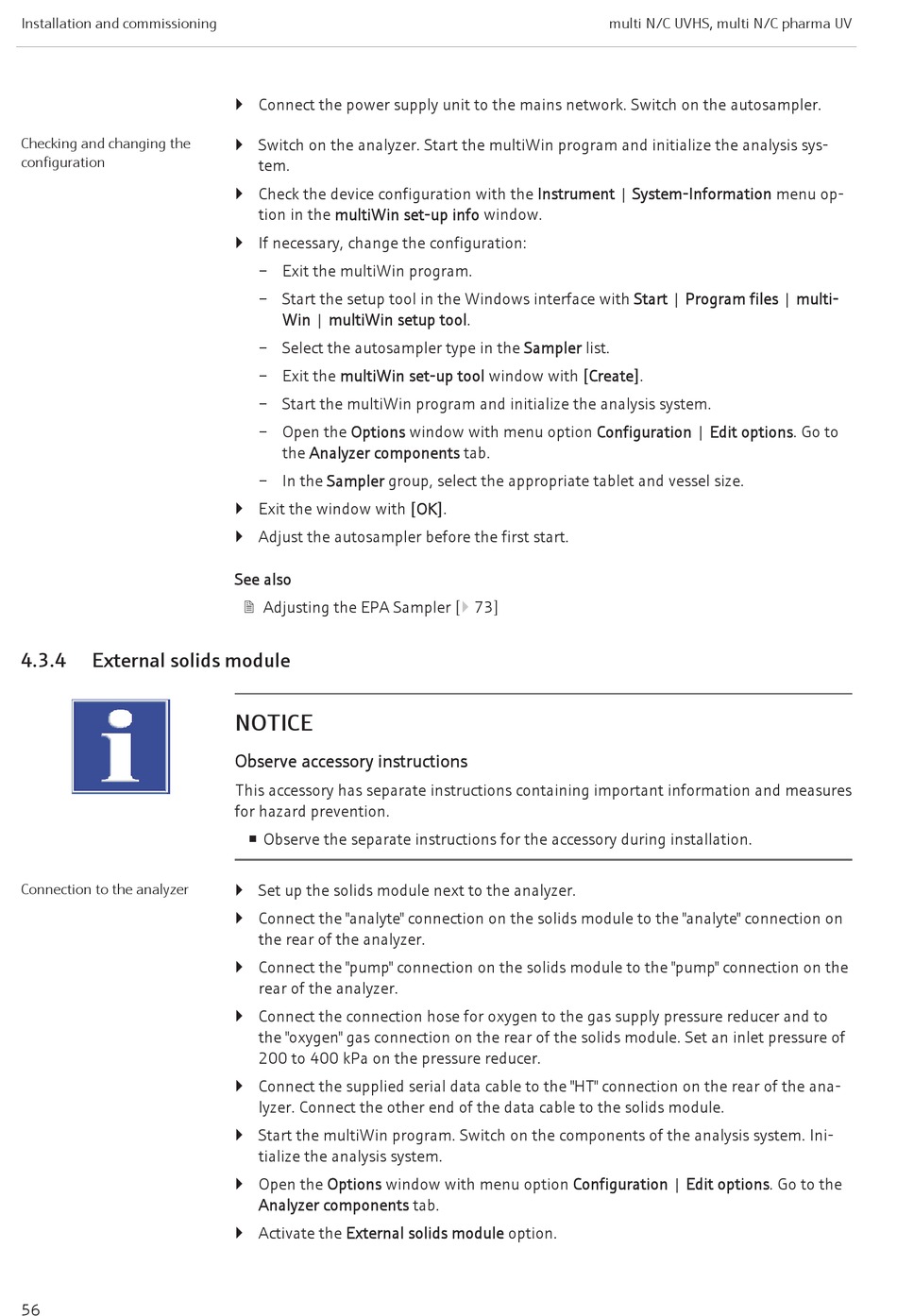

Installation and commissioning
Checking and changing the
configuration
4.3.4

External solids module

Connection to the analyzer
56
} Connect the power supply unit to the mains network. Switch on the autosampler.
} Switch on the analyzer. Start the multiWin program and initialize the analysis sys-
tem.
} Check the device configuration with the Instrument | System-Information menu op-
tion in the multiWin set-up info window.
} If necessary, change the configuration:
– Exit the multiWin program.
– Start the setup tool in the Windows interface with Start | Program files | multi-
Win | multiWin setup tool.
– Select the autosampler type in the Sampler list.
– Exit the multiWin set-up tool window with [Create].
– Start the multiWin program and initialize the analysis system.
– Open the Options window with menu option Configuration | Edit options. Go to
the Analyzer components tab.
– In the Sampler group, select the appropriate tablet and vessel size.
} Exit the window with [OK].
} Adjust the autosampler before the first start.
See also
2 Adjusting the EPA Sampler [} 73]
NOTICE
Observe accessory instructions
This accessory has separate instructions containing important information and measures
for hazard prevention.
¡ Observe the separate instructions for the accessory during installation.
} Set up the solids module next to the analyzer.
} Connect the "analyte" connection on the solids module to the "analyte" connection on
the rear of the analyzer.
} Connect the "pump" connection on the solids module to the "pump" connection on the
rear of the analyzer.
} Connect the connection hose for oxygen to the gas supply pressure reducer and to
the "oxygen" gas connection on the rear of the solids module. Set an inlet pressure of
200 to 400 kPa on the pressure reducer.
} Connect the supplied serial data cable to the "HT" connection on the rear of the ana-
lyzer. Connect the other end of the data cable to the solids module.
} Start the multiWin program. Switch on the components of the analysis system. Ini-
tialize the analysis system.
} Open the Options window with menu option Configuration | Edit options. Go to the
Analyzer components tab.
} Activate the External solids module option.
