multi N/C UVHS, multi N/C pharma UV
} Exit the window with [OK].
6
5
4
3

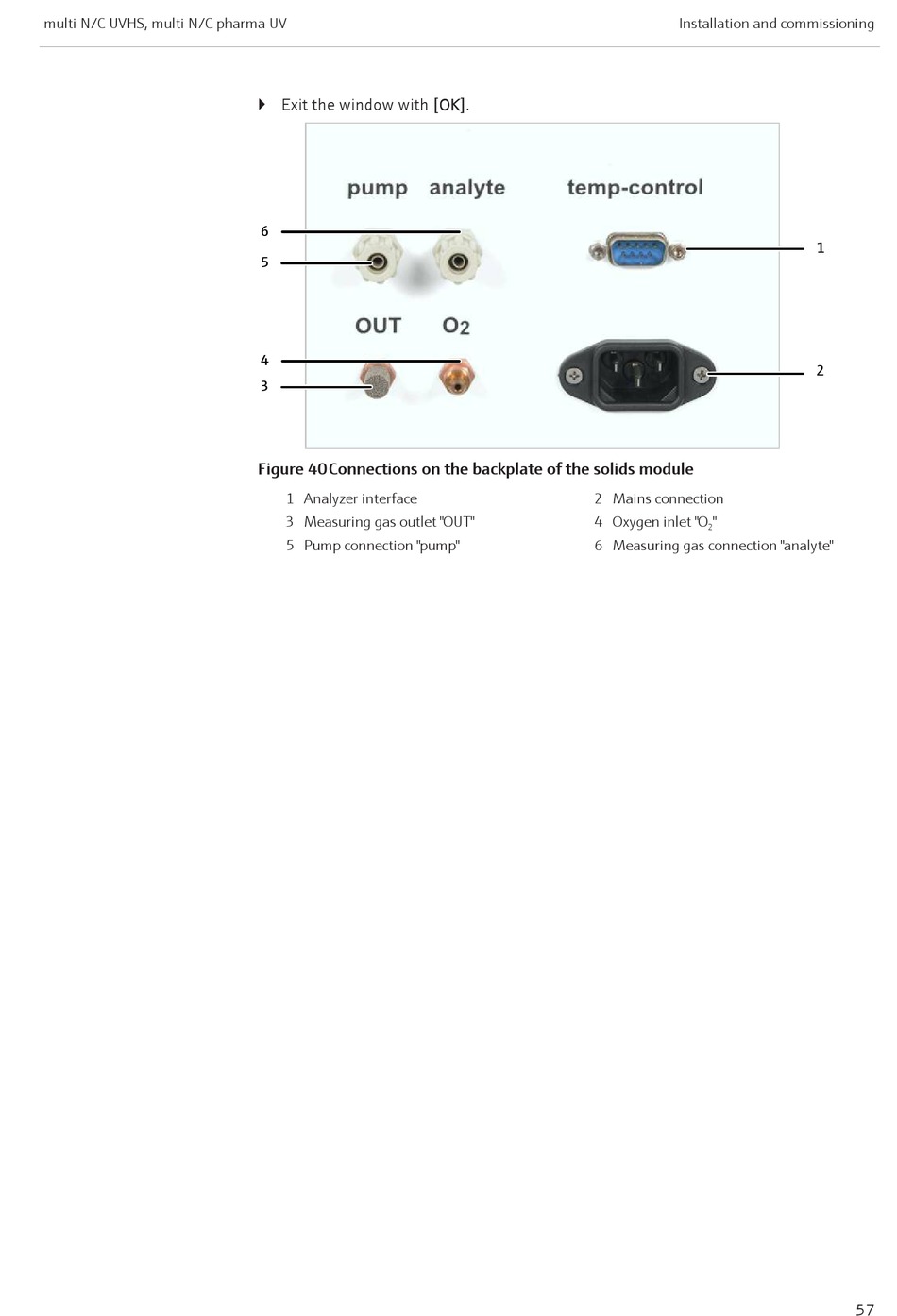

Figure 40Connections on the backplate of the solids module
1 Analyzer interface
3 Measuring gas outlet "OUT"
5 Pump connection "pump"
Installation and commissioning
2 Mains connection
4 Oxygen inlet "O "
2
6 Measuring gas connection "analyte"
1
2
57
