multi N/C UVHS, multi N/C pharma UV
Type plate
3.1.7

Reagents and accessories

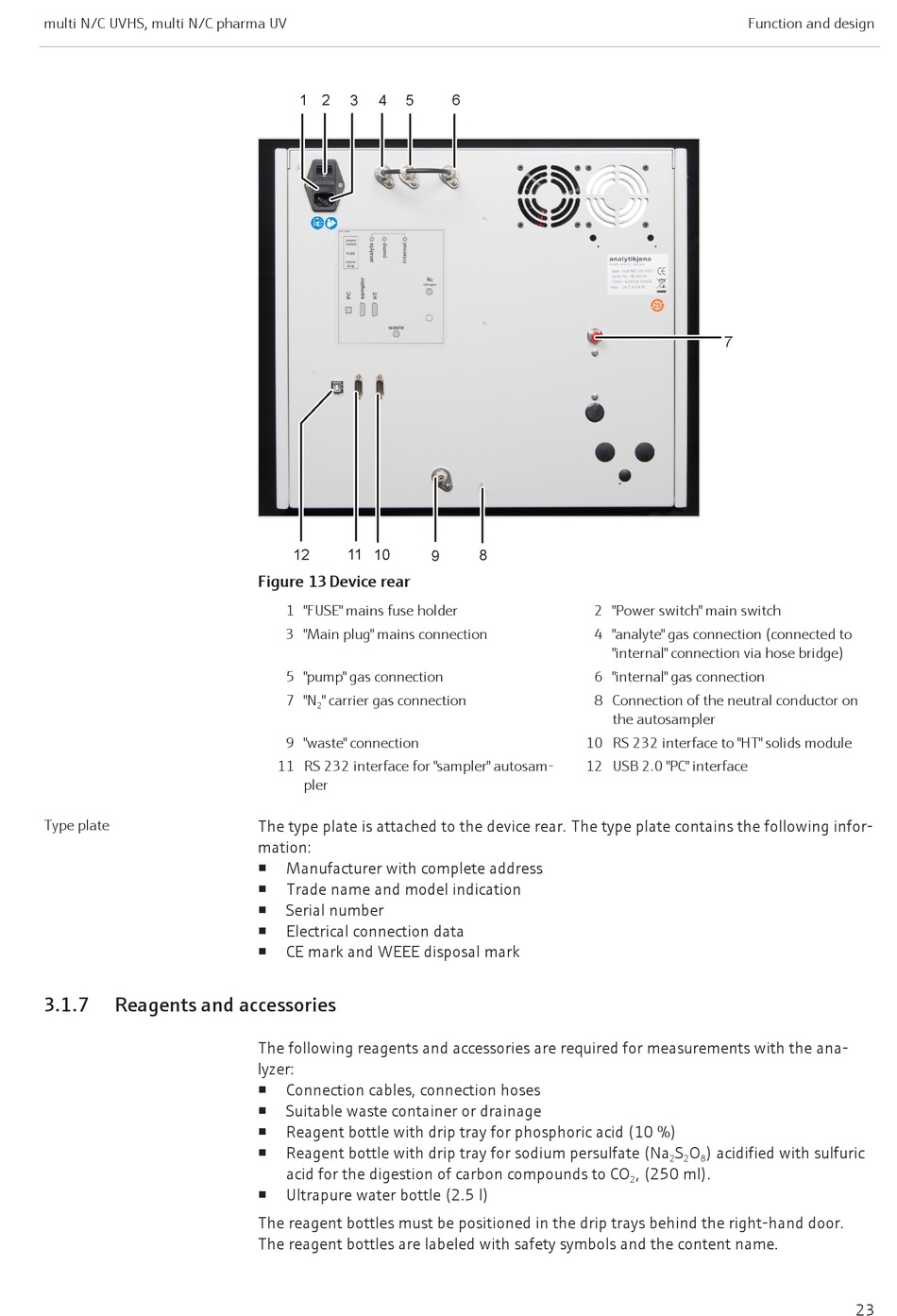

Figure 13Device rear
1 "FUSE" mains fuse holder
3 "Main plug" mains connection
5 "pump" gas connection
7 "N " carrier gas connection
2
9 "waste" connection
11 RS 232 interface for "sampler" autosam-
pler
The type plate is attached to the device rear. The type plate contains the following infor-
mation:
¡ Manufacturer with complete address
Trade name and model indication
¡
Serial number
¡
Electrical connection data
¡
¡ CE mark and WEEE disposal mark
The following reagents and accessories are required for measurements with the ana-
lyzer:
¡ Connection cables, connection hoses
Suitable waste container or drainage
¡
Reagent bottle with drip tray for phosphoric acid (10 %)
¡
Reagent bottle with drip tray for sodium persulfate (Na
¡
acid for the digestion of carbon compounds to CO
¡ Ultrapure water bottle (2.5 l)
The reagent bottles must be positioned in the drip trays behind the right-hand door.
The reagent bottles are labeled with safety symbols and the content name.
Function and design
2 "Power switch" main switch
4 "analyte" gas connection (connected to
"internal" connection via hose bridge)
6 "internal" gas connection
8 Connection of the neutral conductor on
the autosampler
10 RS 232 interface to "HT" solids module
12 USB 2.0 "PC" interface
S O ) acidified with sulfuric
2 2 8
, (250 ml).
2
