Function and design
3.1.1

Sample supply system

16
Sample supply is carried out as flow injection via a syringe pump with 9-port valve. The
injection volume is 50 to 20000 µl.
For small sample volumes (V < 1.5 ml), system water is additionally added to the reactor
with each dosage.
The hose connections are attached to the 9-port valve using Fingertight screw connec-
tions. The syringe body is made of glass and replaceable.

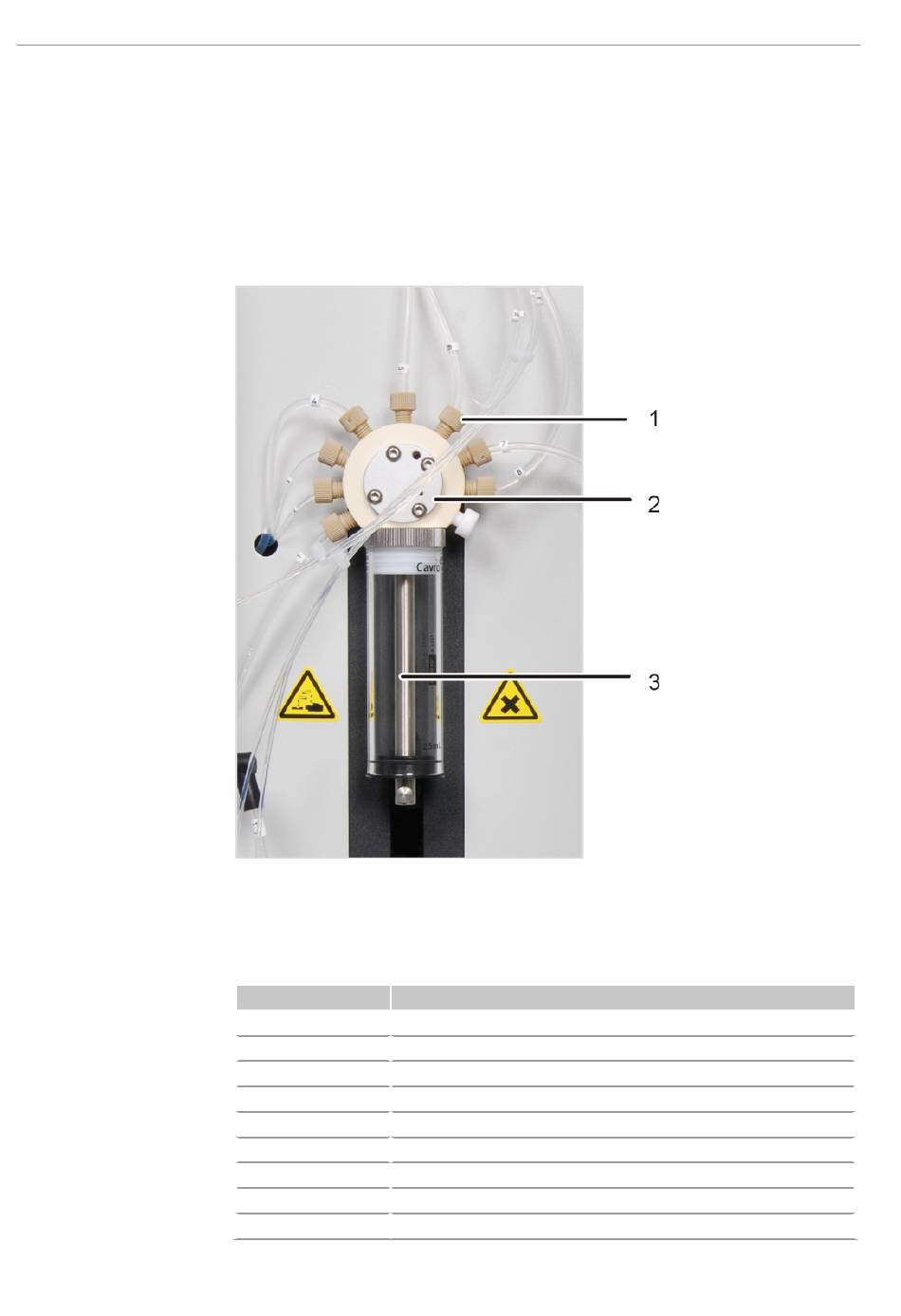

Figure 2 Syringe pump
1 Fingertight connection
3 Dosing syringe
The hoses on the 9-port valve are labeled and connected to the following components:
Hose Connection to the component/accessory
1 TIC condensate container
2 Reagent bottle for phosphoric acid H
3 Reagent bottle for sodium persulfate Na
4 Waste disposal
5 Ultrapure water bottle
6 Sample
7 UV reactor
8 Waste disposal
9 Not used
multi N/C UVHS, multi N/C pharma UV
2 9-port valve
PO
3 4
S O
2 2 8
