Configuring the Embedded PROFINET IO-Controller and its IO Devices on a PROFINET
3.4
Network
Basic configuration steps for a PROFINET network:
Configure the PROFINET IO-Controller parameters and properties in the Proficy Machine
1.
Edition hardware configuration tool.
Add IO-Devices to the PROFINET network. These can be GE Intelligent Platforms
2.
PROFINET Scanner (PNS) modules or third-party IO-Devices.
Configure the IO-Devices.
3.
Store the configuration data from Proficy Machine Edition to the RXi.
4.
For additional information about setting up your PROFINET network, refer to Section
4.2, Configuring the Embedded PROFINET IO-Controller.
Note:
GFK-2816F

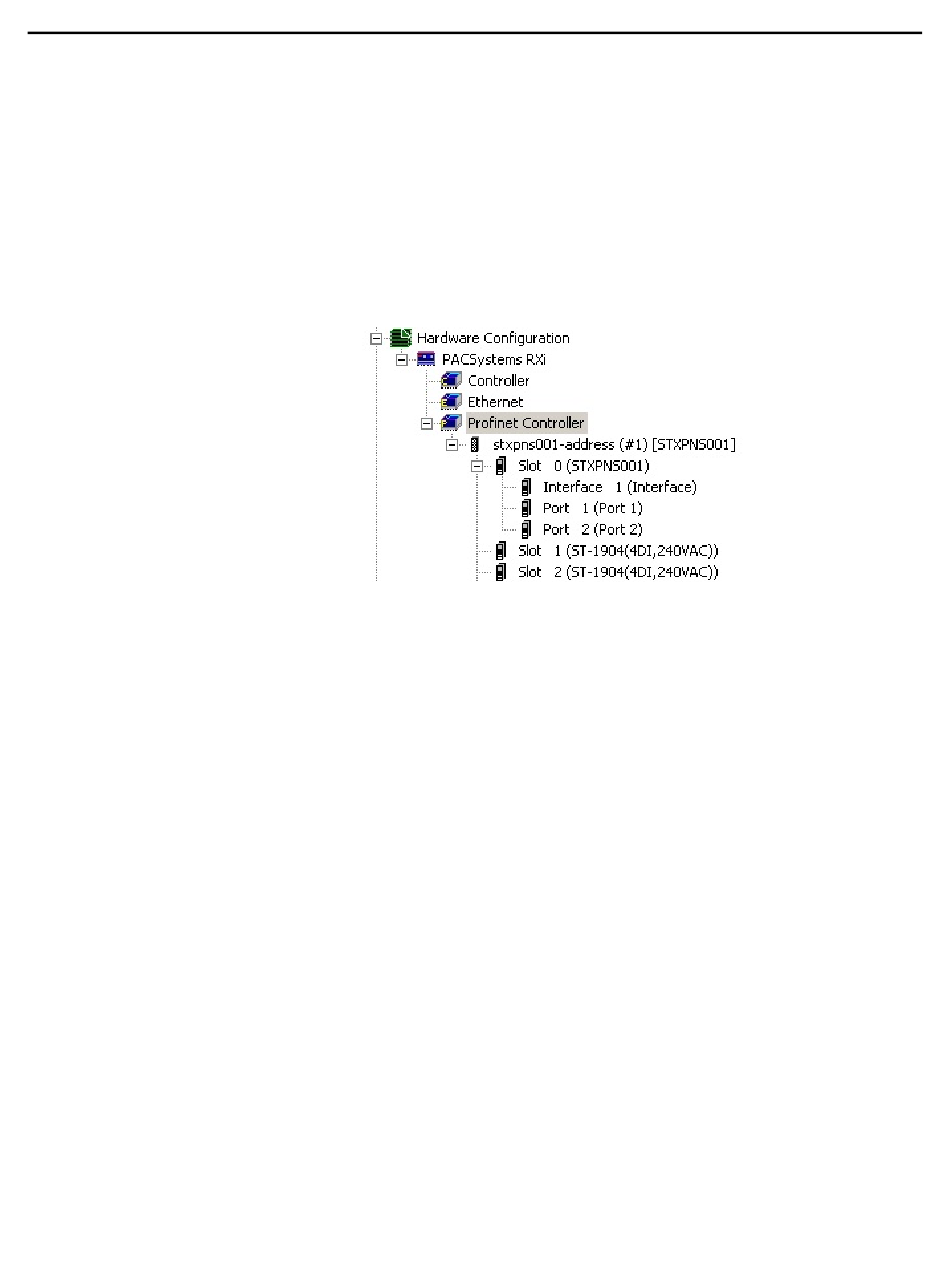

Sample PROFINET Network Configuration with RSTi PNS Node
The subnet for the two PROFINET ports must be different from the subnet for the
port used for the programming software connection. The default subnet for the
Ethernet port (GbE) is 192.168.0.100 (subnet mask is 255.255.255.0).
The PROFINET ports' IP address and gateway have default values of 0.0.0.0. Also,
the device name of the PROFINET IO-Controller functionality is NULL (empty string).
