Chapter 13. OPC UA Server

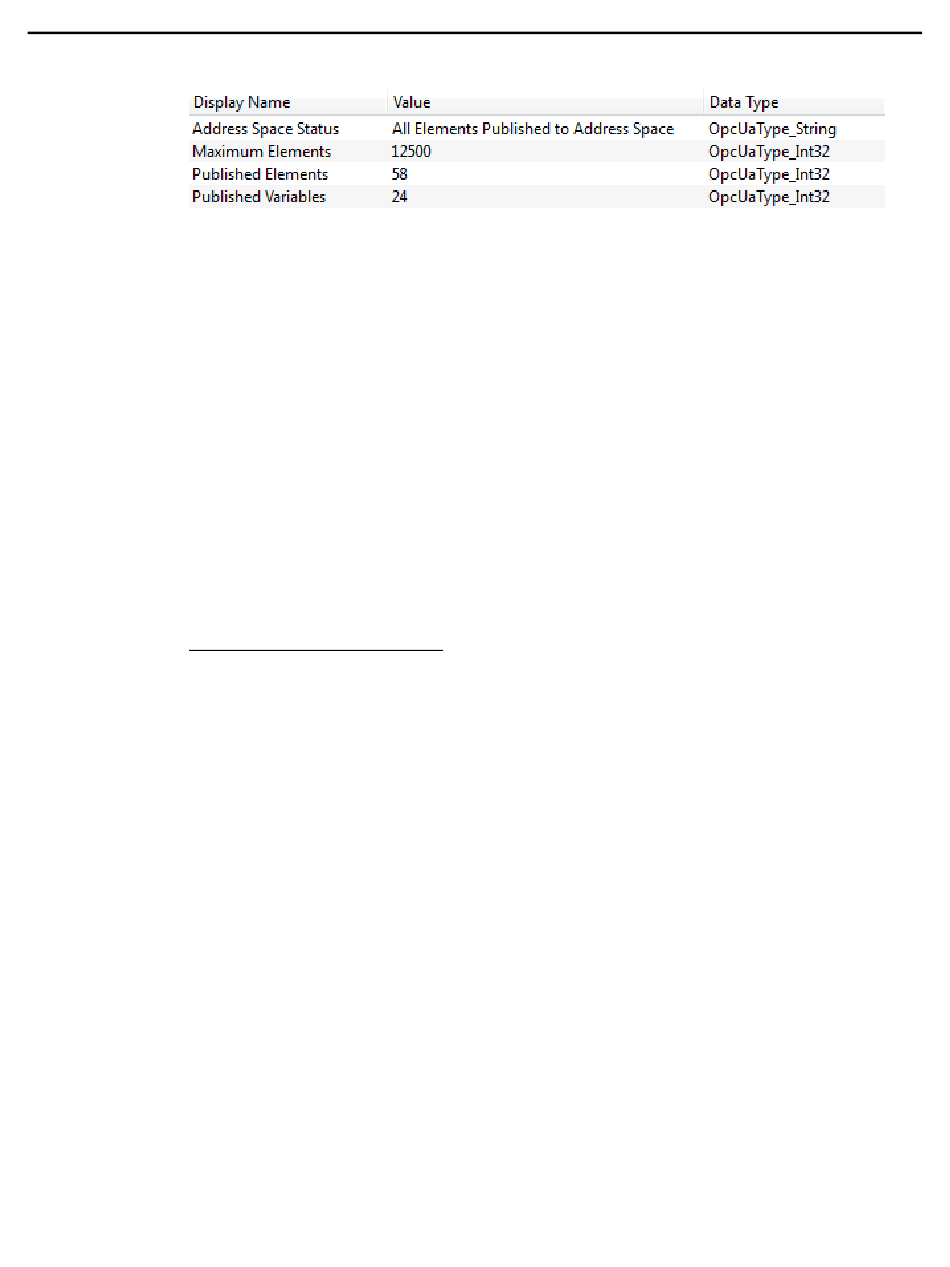

An example is displayed below.
The example above indicates the following about the RXi
11
The OPC variable limits displayed in this example do not necessarily reflect the actual limits in your
controller. This value can change depending on the firmware version.
256
Address Space Status = All Elements Published to Address Space
The number of published elements did not exceed the maximum allowed by the
controller. Thus, all elements were published. If the maximum had been exceeded,
then elements would still be published up to the limit and the text would change to:
Address Space Status = Maximum Published Elements Exceeded: Address
Space Truncated
Maximum Elements = 12,500
Maximum Elements is the maximum number of application elements supported by
this RXi controller. In the example above, that limit is 12,500 application elements.
Published Elements = 58
Published Elements is a count of how many application elements are currently
being published. In the example above, the number is 58 application elements.
Published Variables = 24
Published Variables is a count of the RXi application variables currently being
published. In the example, the number is 24. Note that the Published Variables =
24, while Published Elements = 58. The difference is due to one of the application
variables being a 34-element array.
