Chapter 4. Configuration
Configuring Sub-Modules of a Third-Party IO-Device

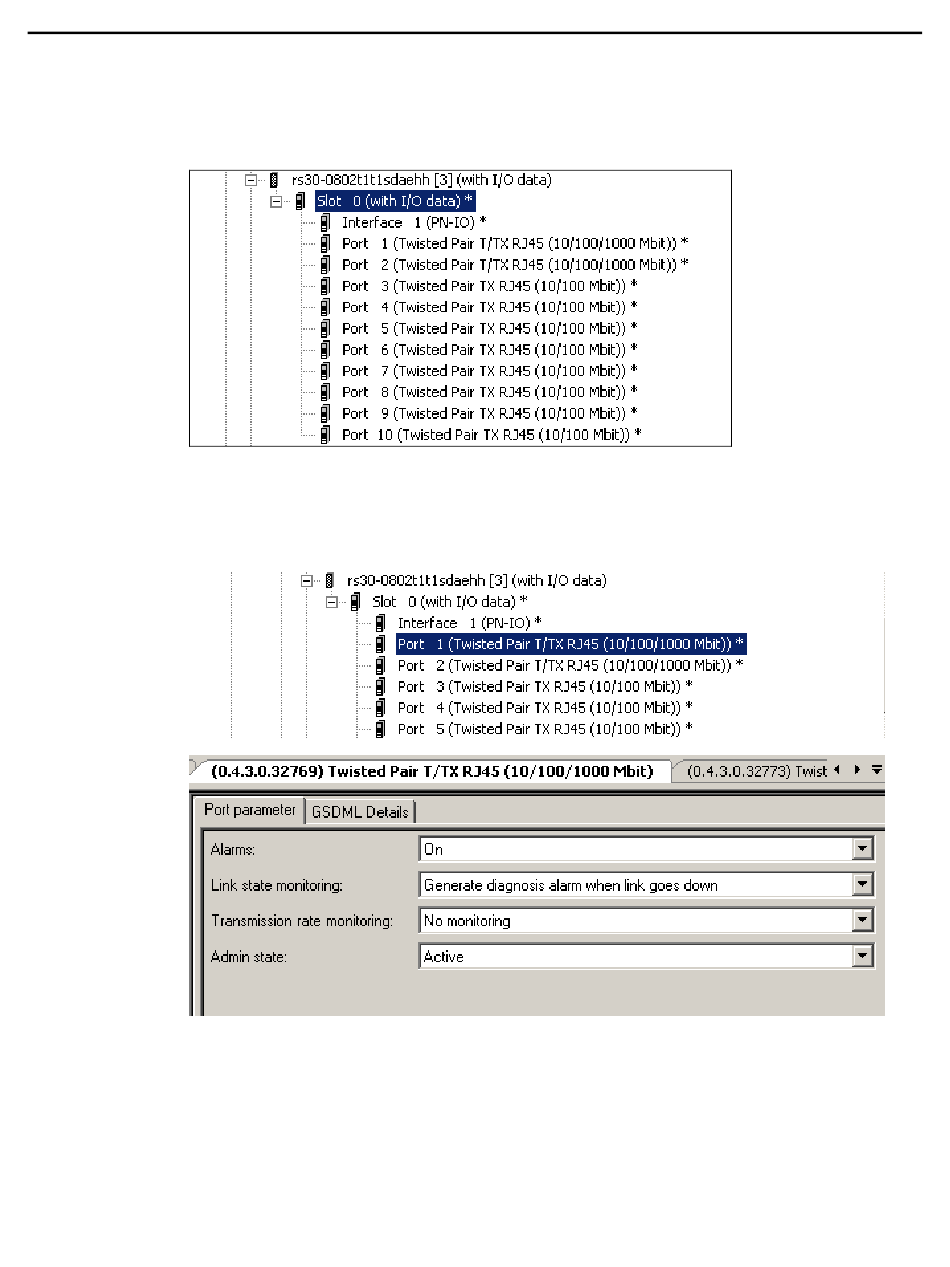

To configure the sub-modules of a third-party IO-Device, expand it in the Navigator. For
example:
This example's device is a switch. The parameters of its ports can be viewed and edited by
either double-clicking on a port, or selecting a port then right-clicking and selecting Configure
from the menu.
Select the individual ports, for the above example IO-Device, the port parameters will appear
for editing.
