2.2.3

Dimensions and Clearances for Installation

Dimensions
Minimum clearances for heat
dissipation
Note:
GFK-2816F
RXi Controller:
Backplate:
Each side: 51mm (2 inches)
Top and bottom: 127mm (5 inches)
51
mm
(2")

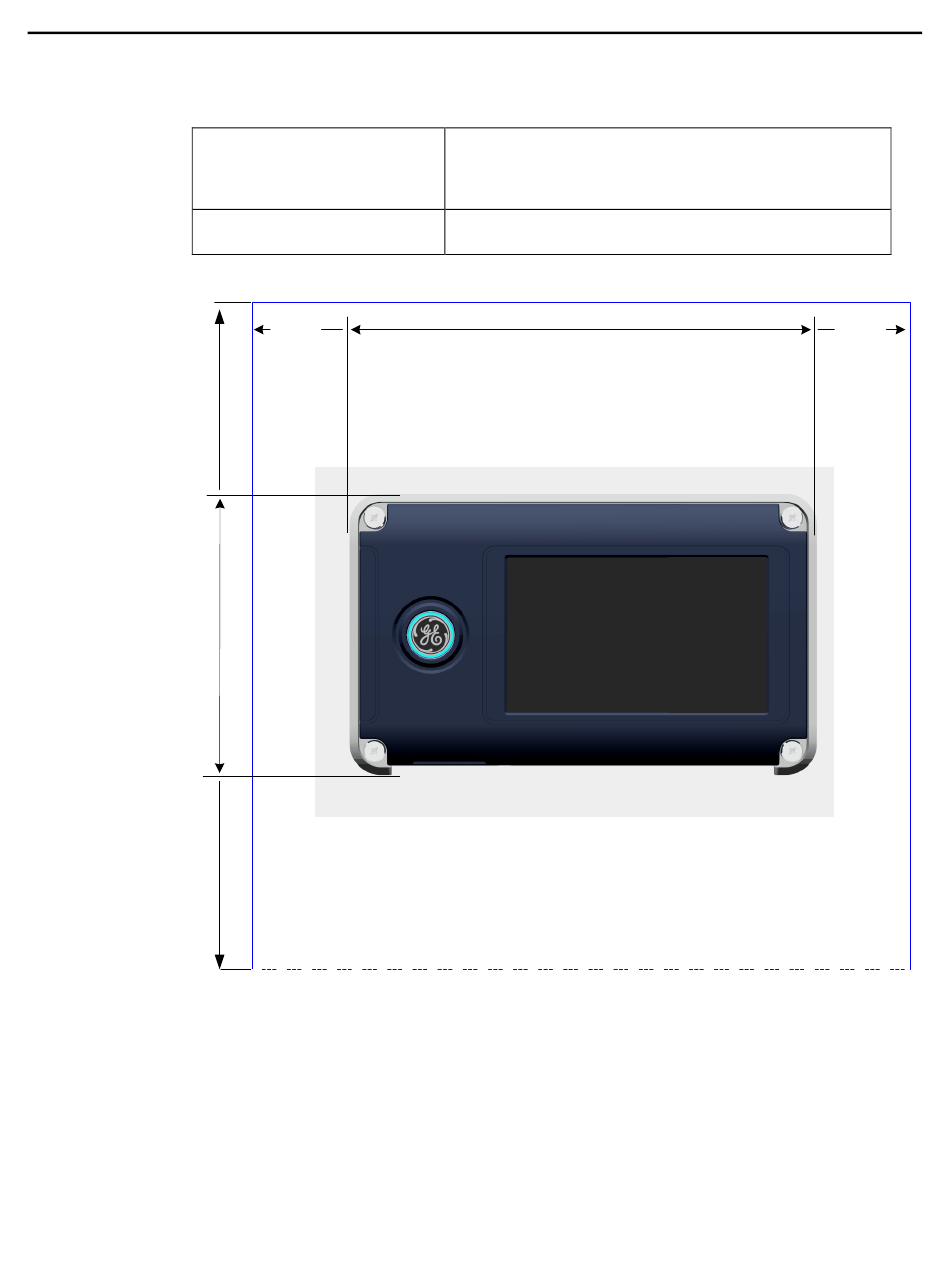

Clearances for Heat Dissipation
Dimensions for clearances not shown to scale.
August 2015
191.8 mm x 115.6 mm x 81.3 mm
(7.55 in x 4.55 in. x 3.2 in)
226 mm x 137 mm x 12 mm
(8.90 in. x 5.39 in. x 0.47 in.)
191.8 mm
(7.55")
Chapter 2. Installation
51
mm
(2")
