From the client side, we can establish a connection by placing the above information into the
connection string (refer to screenshot below).
We can then connect to the RXi OPC UA server.
Note:
The Controller Target Name is set within Machine Edition and is displayed in the screenshot
below. A sample client connection can be seen above.
Note:
GFK-2816F

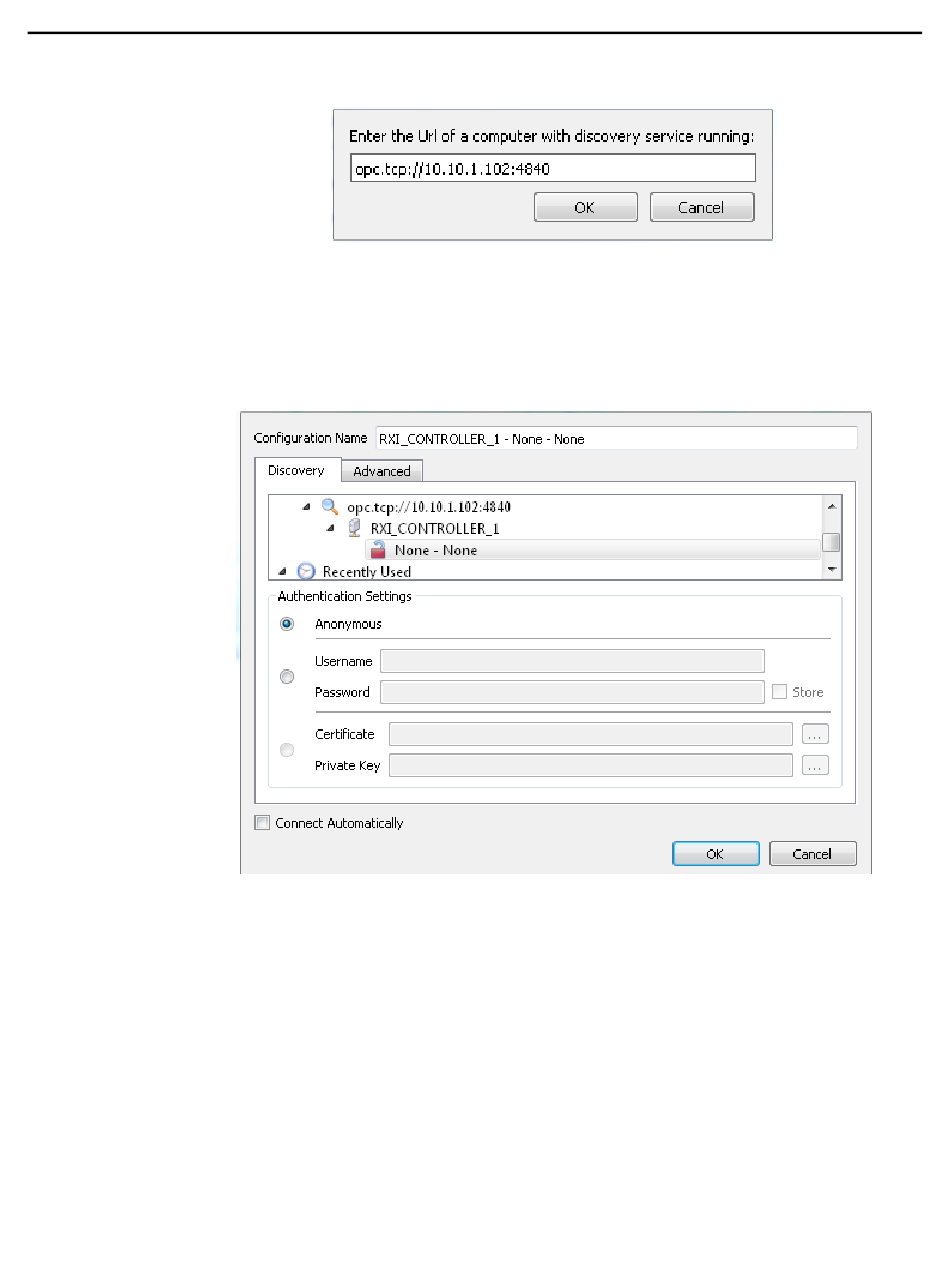

OPC UA Server Client Connection String
The Client can see the Controller Target Name when connecting to the
server.
Client Connection Dialog
The RXi's OPC UA server supports 5 clients. If 5 clients are connected,
additional connection requests will be rejected by the OPC UA server.
August 2015
Chapter 13. OPC UA Server
247
