Chapter 5. CPU Operation
5.5.2
Stop-to-Run Mode Transition
The CPU performs the following operations on Stop-to-Run transition:
■
■
■
■
Note:
82
Validation of sweep mode and program scheduling mode selections
Validation of references used by programs with the actual configured sizes
Re-initialization of data areas for external blocks and standalone C programs
Clearing of non-retentive memory

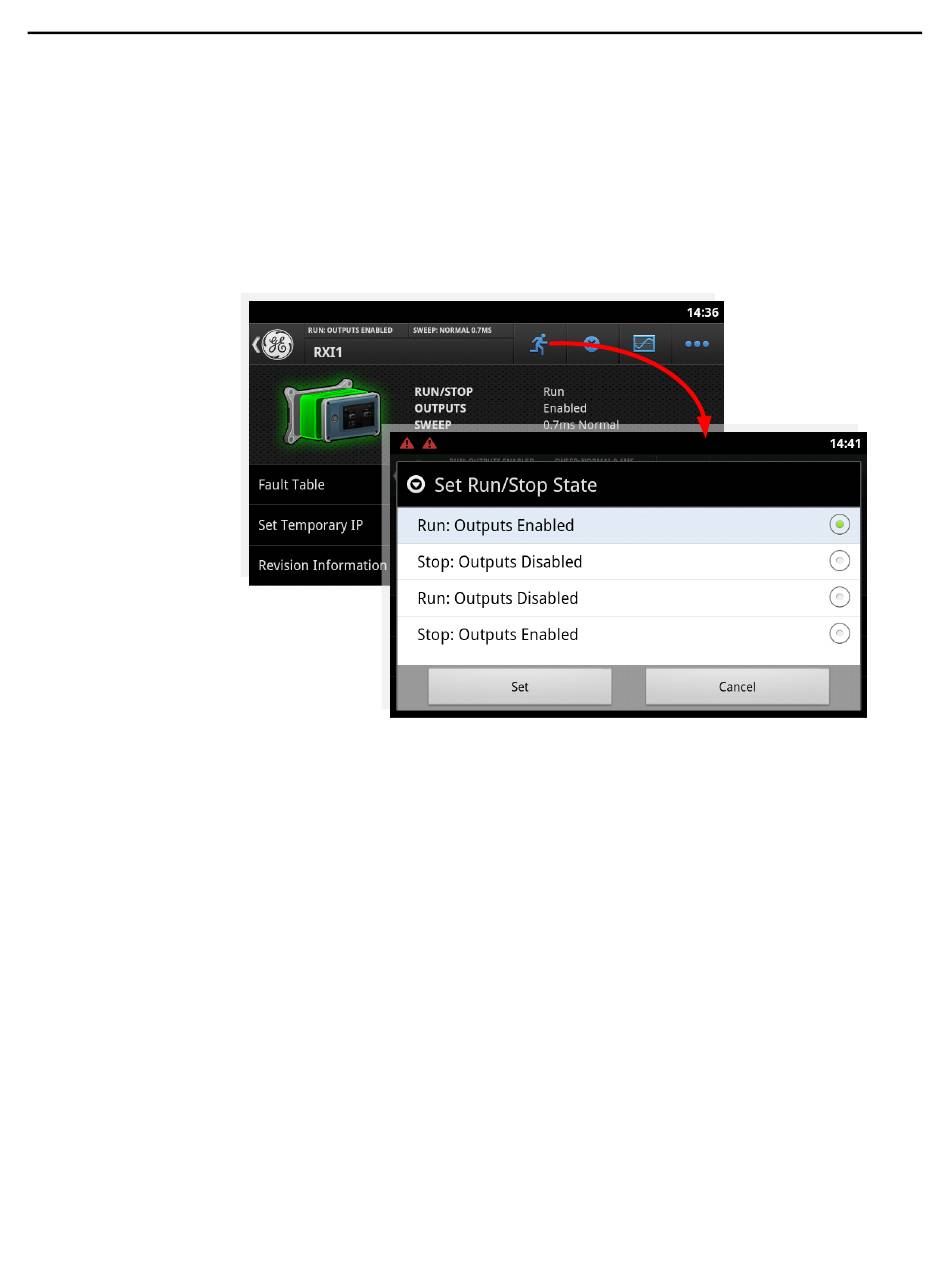

You can use the IDM to change the RXi Controller's run/stop state as follows.
Note:
For additional information related to IDM operation, refer to Section 3.6
IDM Operational Notes.
PACSystems* RXi Distributed IO Controller User Manual
GFK-2816F
