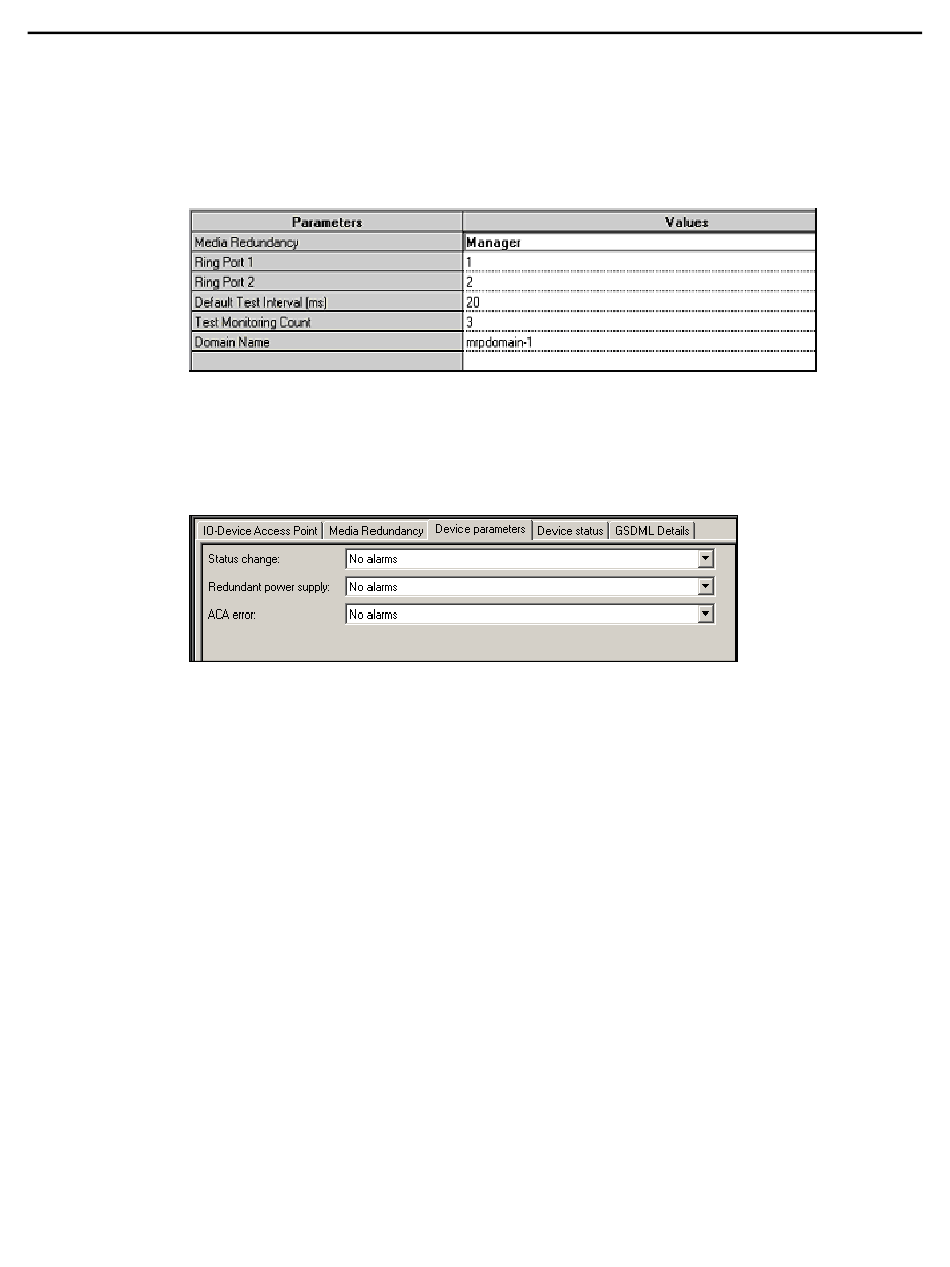

If the IO-Device will be a Media Redundancy Manager, you can edit the Ring Port selections
as above. The device's GSDML file determines the valid ranges for Default Test Interval and
Test Monitoring Count.
For the Media Redundancy Manager, the Domain Name can be edited by typing over the
default name.
IO-Device Parameters (Device Parameters Tab)
Additional Device Parameters tabs can be used to select additional device options, as
defined by the device manufacturer.
Note:
IO-Device Parameters (GSDML Details Tab)
The GSDML Details tab displays the device's GSDML parameters, which cannot be edited.
GFK-2816F
The names of the tabs and parameters are derived from manufacturer specific
information contained in the associated GSDML file. For example:
August 2015
Chapter 4. Configuration
61
