Chapter 3. Getting Started: Initial Power-up and Configuration

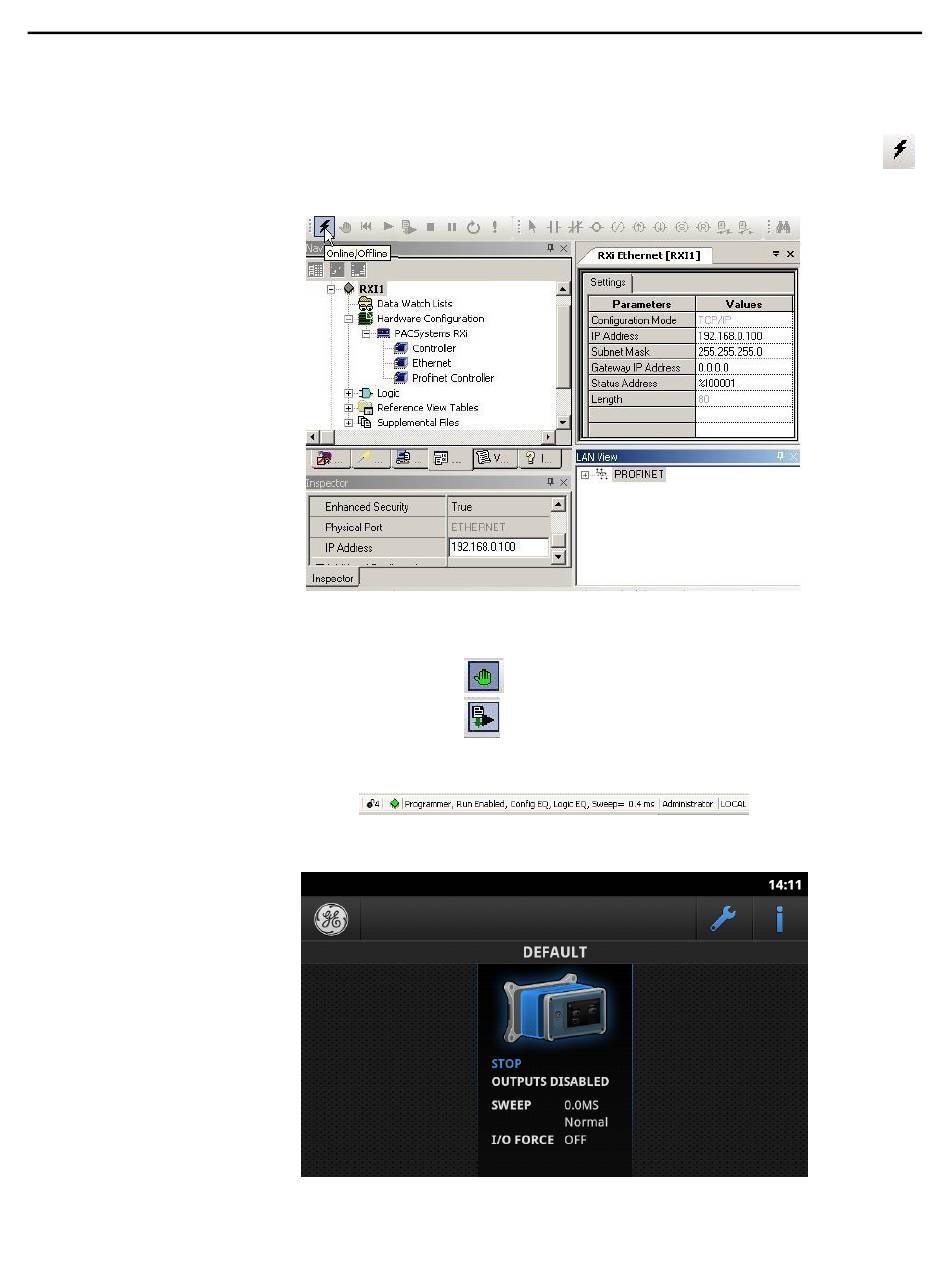

2. Go online with Proficy Machine Edition software.
In Proficy Machine Edition, create a project with a PACSystems RXi target.
In the Inspector, set the active target's IP Address property to the address of the RXi.
Right click the target and select Go Online or click the Online/Offline toolbar button.
3. Download a project and start the RXi. From the RXi target right-click menu, or the toolbar:
The Proficy Machine Edition status bar indicates the status of the RXi Controller.
Note that the IDM identifies the RXi Controller as Default until a project is downloaded to it.
30
Sample Configuration for RXi Ethernet Interface
Select Monitor mode.
Select Download and Start.
PACSystems* RXi Distributed IO Controller User Manual
IDM Display after Initial Power-up
GFK-2816F
