Initial Operation

Positioning the Target, Thickness Measurement

The red-light pilot laser supports you in aligning the
sensor to the target during commissioning.
Turn on or off the pilot laser in the menu Settings >
System settings.

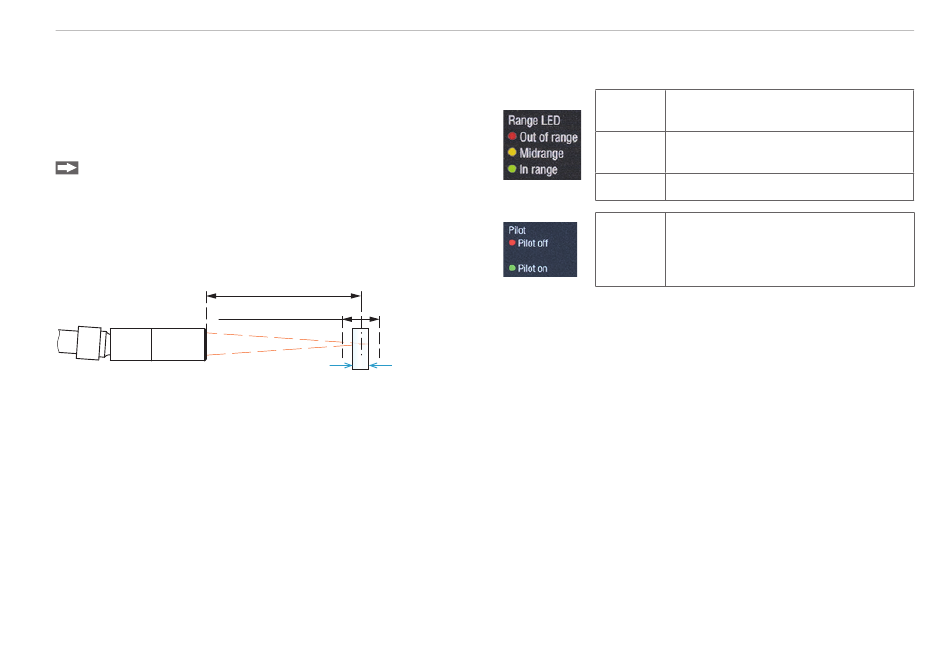

Position the target (measurement object) as much
as possible in the mid of the operating range.
The peak positions remains stable in the FFT signal,
even though the measurement target moves. The peak
position depends on the target thickness.
Working distance
Operating range
Basics thickness measurement
IMS5x00
Measuring range
1
thickness
The LED Range on the controller front indicates the
position of the target in relation to the sensor.
No target or target outside the
Red
measuring range
Target close to mid of
Yellow
measuring range
Green Target within measuring range
Pilot laser is turned on and off
Green alternately, if no target or
outside the measuring range
1) The maximum thickness for a air gap is 2.1 mm. The
thickness for glass (n = 1.5) is 35 µm as a minimum
and 1.4 mm as a maximum.
