Initial Operation

Messpeak Sorting

The selection of peak/peaks dictates which region in the signal is used for the distance or thickness measurement.
Switch to material selection by going to Settings > Data recording.
Switch to the chart type FFT.
Choose between First peak and Highest peak.

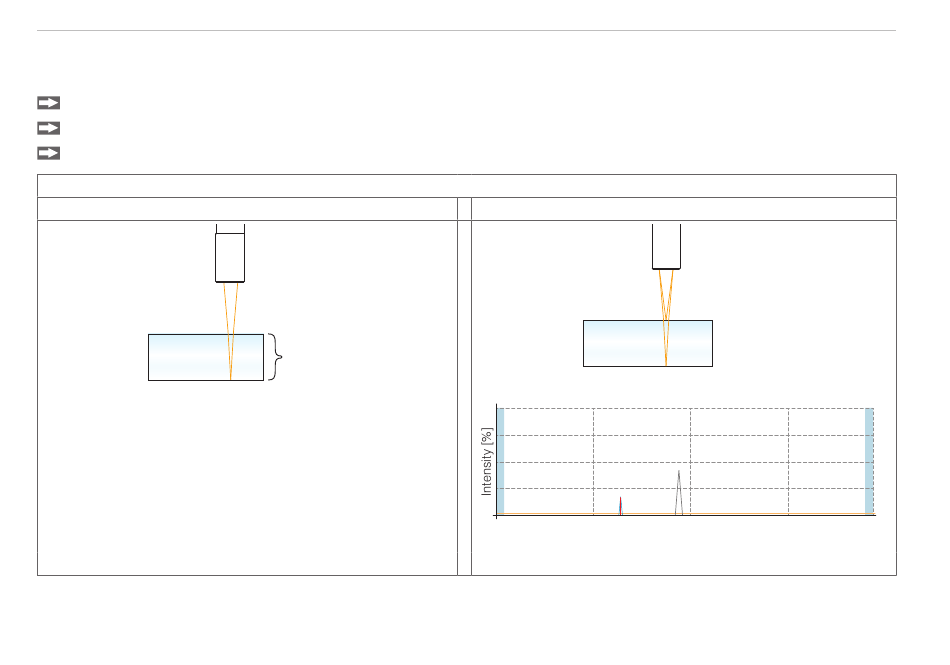

Thickness
Layer 1
The IMS5400-THxx evaluates one layer. The peak in the FFT
signal already corresponds to the thickness. It is not neces-
sary to decide between the first and highest peak.
1) During a distance measurement on transparent objects, thickness peaks are displayed in addition to the distance peaks, but the
controller does not evaluate them. For the sake of clarity, thickness peaks are marked with letters.
IMS5x00
Controller IMC5400, IMC5600
Peak 1
Distance
Layer 1
0 20
Range [%]
The first peak is evaluated
Peak 1
Peak A 1
Peak 2
40 60
