Initial Operation

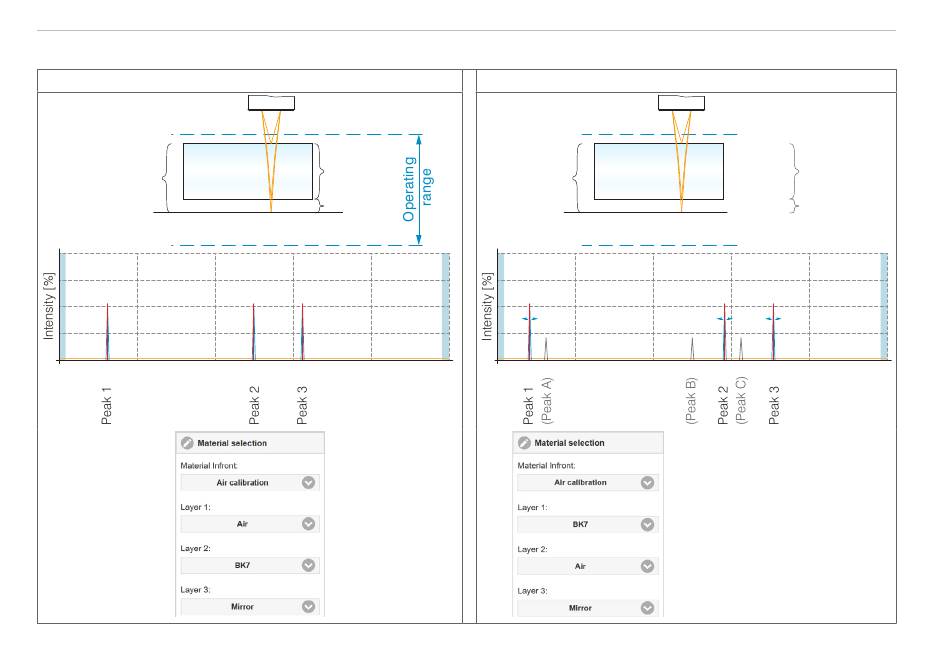

Example of a layer of glass and gap, measpeak sorting: First, corresponding material selection
Thickness
IMP-TH
BK7
Peak 3
Gap
0 20 40
IMS5x00
Peak 2
Peak 1
Range [%] 60 80
IMP-DS
SMR
BK7
Peak C
Gap
EMR
100 0 20
Distance
Peak 1
Peak B
Peak 2
Peak A
Peak 3
40 Range [%] 60 80
During a distance mea-
1)
surement on transparent
objects, thickness peaks
are displayed in addition to
the distance peaks, but the
controller does not evaluate
them. For the sake of clarity,
thickness peaks are marked
with letters.
