Display Assembly; Display Adapter Board; Figure 4-5: Display Assembly Removal - Tektronix DSA8300 Service Manual

Removal and Installation

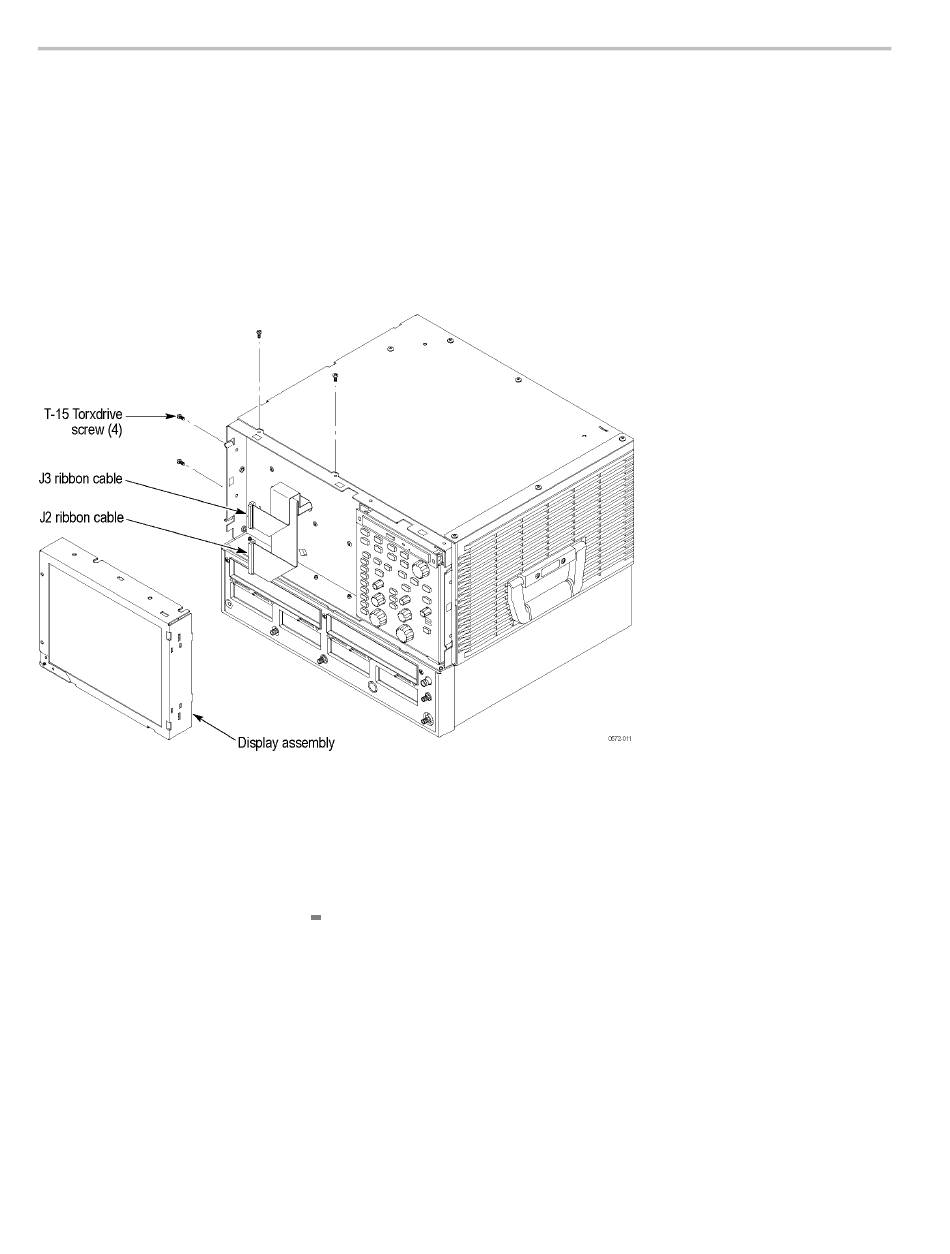

Figure 4-5: Display assembly removal

Display Adapter Board

4–16
e. Remove the Display assembly from the instrument.
f. To reinstall the Display assembly: Reverse the steps. Refer to the cable
connections table for information about where to connect cables. (See
Table 5-1.)
g. To reinstall the Display assembly: Reverse the steps. Refer to the cable
connections table for information about where to connect cables. (See
Table 5-1.)
You will need a T-15 Torx driver.
1. To access the board, remove these assemblies:
Display assembly (See page 4-14.)
2. To remove the Display Adapter Board from the Display assembly:
a. Disconnect the cables from the Display Adapter board. (See Figure 4-6.)
b. Remove the four T-15 Torx drive screws that attach the Display Adapter
board to the Display assembly. (See Figure 5-3.)
c. Remove the Display Adapter board from the Display assembly.
3. To reinstall the Display Adapter board: Reverse the steps. (See Figure 4-7.)
DSA8300 Digital Serial Analyzer and Modules Service Manual
