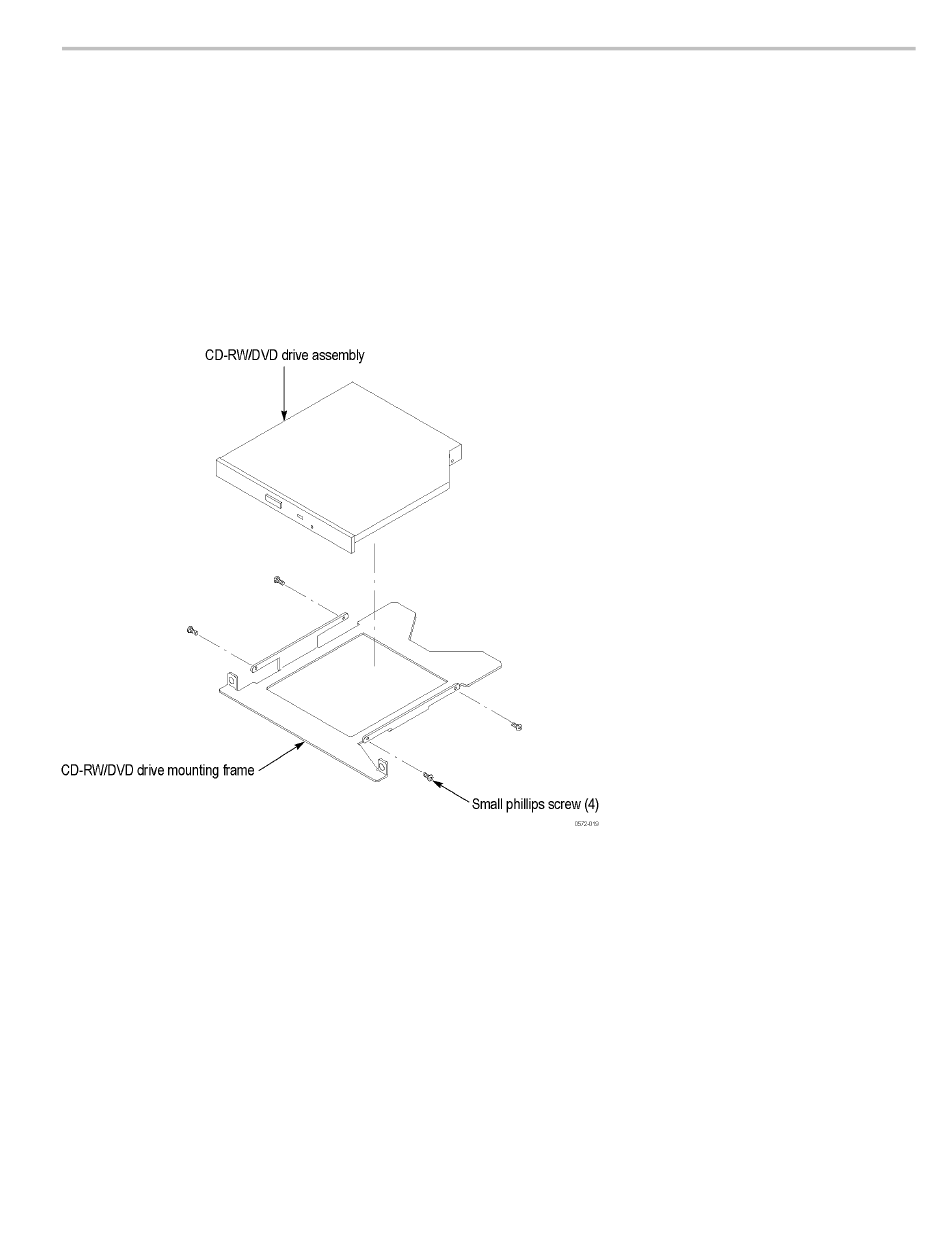

Figure 4-11: CD-RW/DVD drive removal

DSA8300 Digital Serial Analyzer and Modules Service Manual
3. To remove the CD-RW/DVD drive from the cartridge: (See Figure 4-11 on
page 4-23.)
a. Remove the four small Phillips screws that fasten the CD-RW/DVD drive
to the mounting frame.
b. Remove the drive from the mounting frame.
4. Detach the interface circuit board from the CD-RW/DVD drive.
5. To reinstall the assembly: Reverse the steps. Refer to the cable connections
table for information about where to connect cables. (See Table 5-1.)
Removal and Installation
4–23
