Figure 5-11: 80E05 Module (Option 10G Shown); Table 5-12: 80E05 Module Replaceable Parts List - Tektronix DSA8300 Service Manual

Table 5-12: 80E05 module replaceable parts list

Fig. & Tektronix
index part
number number
5-11-1 200-4568-00
-2 335-0370-00
-3 211-0373-00
-4 105-1115-00
-5 011-0176-00

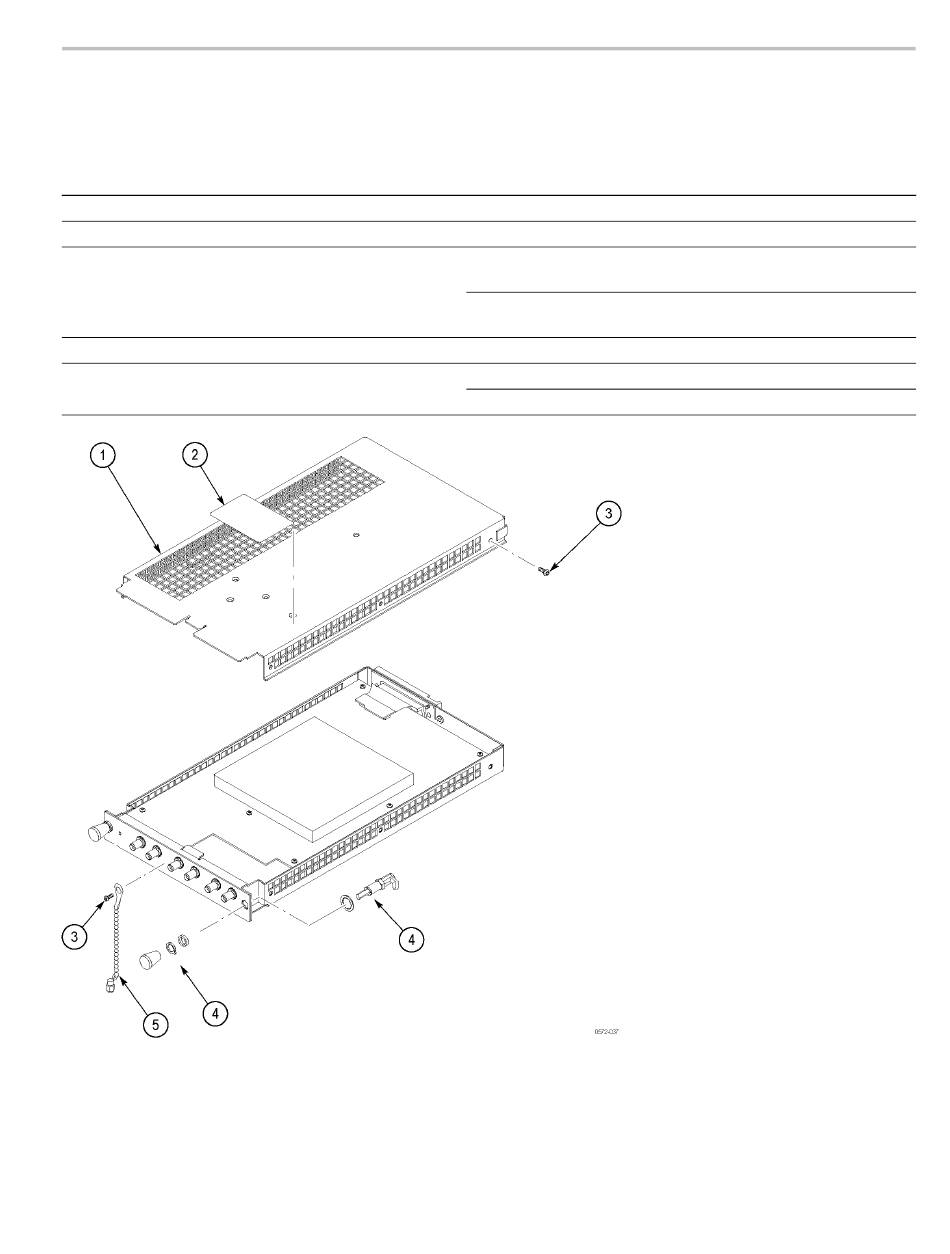

Figure 5-11: 80E05 module (Option 10G shown)

DSA8300 Digital Serial Analyzer and Modules Service Manual
Serial Serial
number number
effective discont'd Qty Name & description
1 COVER: OPTICAL MODULE, 0.050 AL
1 MARKER, IDENT: ANTI-STATIC LABEL
12 SCREW, MACHINE: 4-40 X 0.250, PNH, STL CD
PLT,T10
13 SCREW, MACHINE: 4-40 X 0.250, PNH, STL CD
PLT, T10 (OPTION 10G)
2 LATCH: ADJUSTABLE GRIP
5 TERM, RF; SMA, PLUG, STR, SST
6 TERM,RF; SMA, PLUG, STR, SST (OPTION 10G)
