Figure 5-12: 80E06 Module; Table 5-13: 80E06 Module Replaceable Parts List - Tektronix DSA8300 Service Manual

Replaceable Parts List

Table 5-13: 80E06 module replaceable parts list

Fig. & Tektronix
index part
number number
5-12- 1 380-1159-00
-2 211-0087-00
- - - - -
-3
-4 335-0863-00
-5 211-0088-00

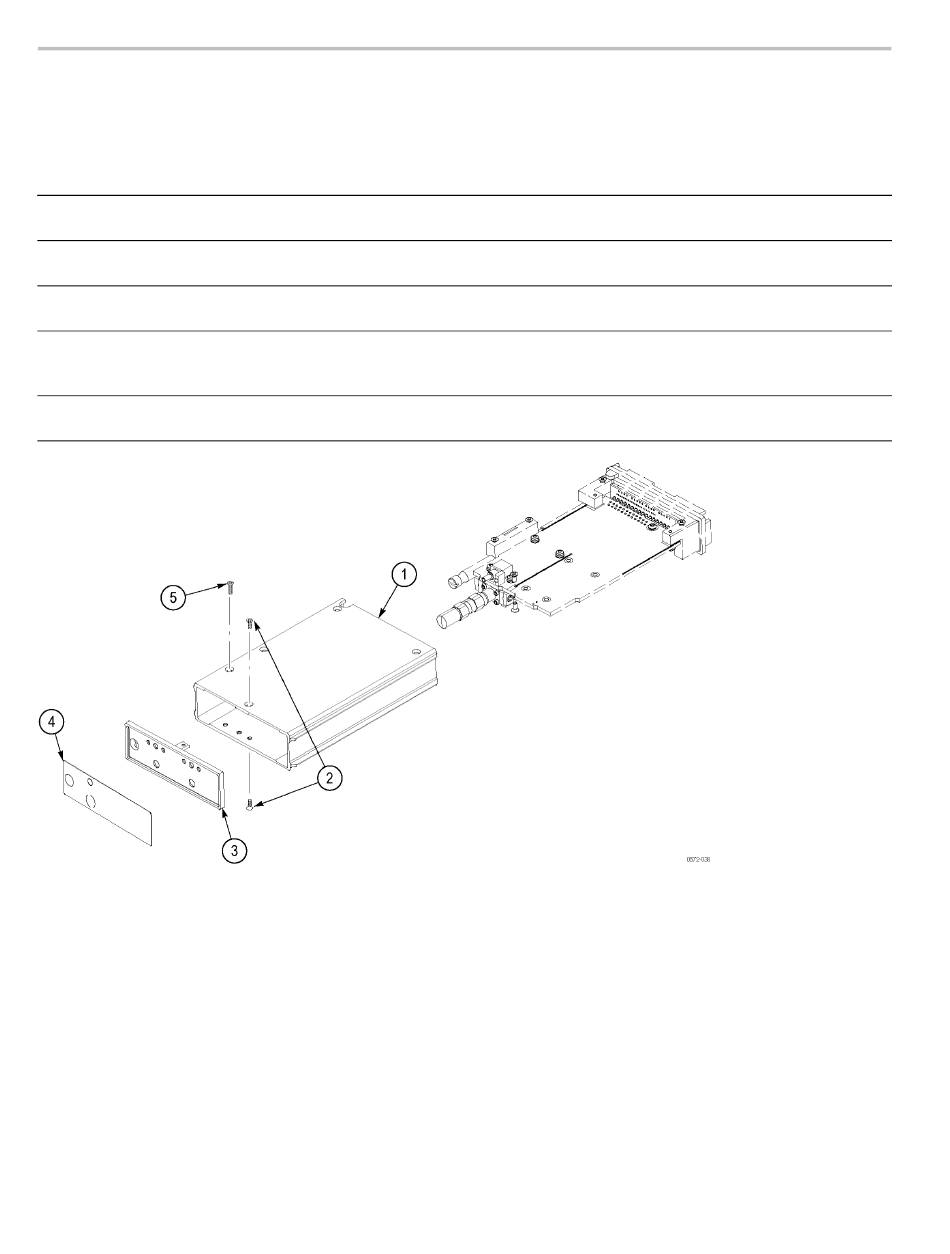

Figure 5-12: 80E06 module

5–22
Serial Serial
number number
effective discont'd
DSA8300 Digital Serial Analyzer and Modules Service Manual
Qty Name & description
1 HOUSING: SAMPLING HEAD, ALUMINUM, 80E06,
SAFETY CONTROLLED
2
SCREW, MACHINE: 2-56 X 0.188, FLH, 82 DEG
SST, POZ
1 PANEL, FRONT: NSD HEADS, BLANK,
386-5603-00, 80E06
1 MARKER, IDENT: SAMPLING HEAD, 2.760 X
0.810, 0.010 POLY, W/ADHESIVE, 80E06, SAFETY
CONTROLLED
4
SCREW, MACHINE: 2-56 X 0.281, FLH, 82 DEG,
STL BK OXD, POZ
