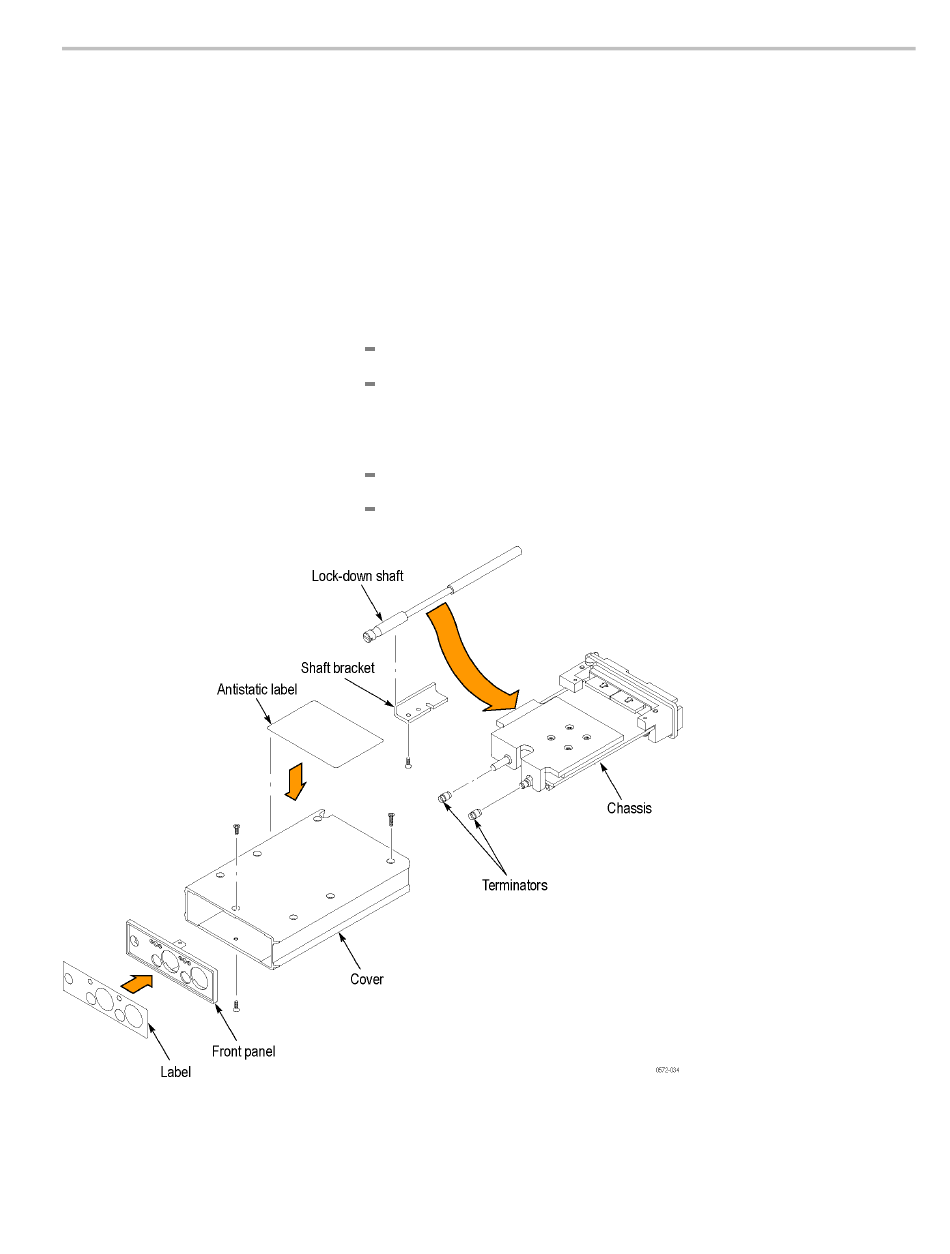

Figure 4-22: 80A00 and 82A00 series parts removal (80A01 shown)

DSA8300 Digital Serial Analyzer and Modules Service Manual
4. To remove the lock-down shaft and bracket: (See Figure 4-22 on page 4-49.)
a. Remove the two screws that attach the bracket to its mount. Remove
the bracket.
b. Lift out the lock-down shaft.
5. To reassemble the module: Perform steps 2 through 4 in reverse to reassemble
the module, considering the following sub-steps as they apply:
a. If installing a replacement front panel, perform the following steps before
installing the front panel:
Remove the backing from the front panel label.
Align the holes and attach the label to the new front panel.
b. If installing a replacement cover, perform the following steps before
replacing the cover:
Remove the backing from the antistatic label.
Install the antistatic label to the replacement cover.
Removal and Installation
4–49
