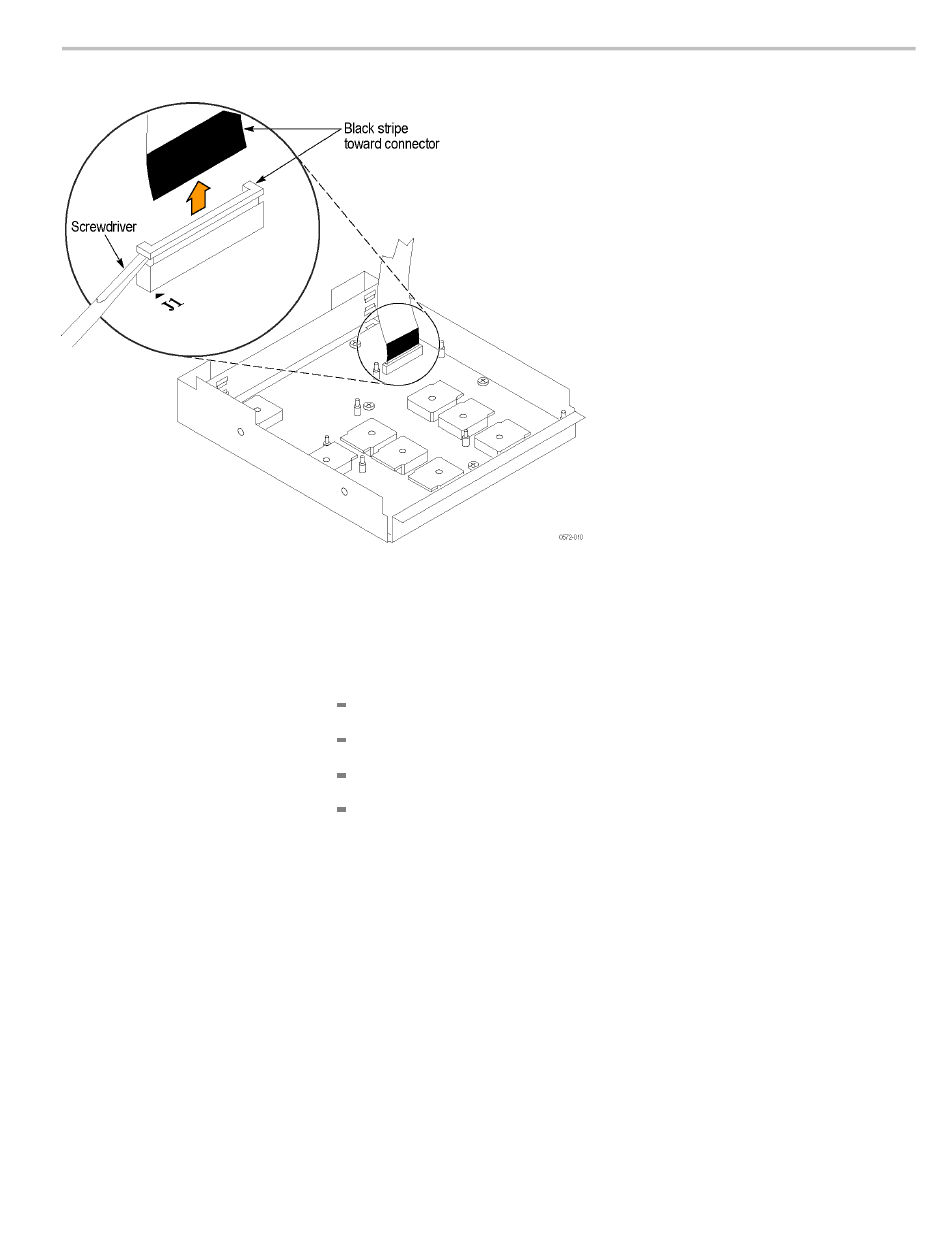

Figure 4-4: J1 flex cable connector removal
Front Panel Board
DSA8300 Digital Serial Analyzer and Modules Service Manual
You will need a small flat-bladed screwdriver for prying, and a T-15 Torx driver.
1. To access the board, remove these assemblies:
Front-Panel knobs (See page 4-8.)
Front-Panel trim (See page 4-9.)
CD-RW/DVD drive and trim (See page 4-22.)
Front-Panel assembly (See page 4-12.)
2. To remove the Front Panel circuit board: (See Figure 4-3 on page 4-11.)
(See Figure 5-3 on page 5-9.)
a. Remove the eight T-15 Torx drive screws that attach the Front-Panel
board to the Front-Panel assembly.
b. Pry the board up off the alignment studs. Place a flat bladed screwdriver
in the pry point access holes to pry the board up from the assembly.
c. Remove the board from the assembly.
3. To reinstall the Front-Panel board: Reverse the steps. Verify that the plastic
bezel is flush against the sheet metal. If it is not, the board might not be seated
properly over the plastic posts.
