Figure 5-15: 80A01 Module; Table 5-16: 80A01 Module Replaceable Parts List - Tektronix DSA8300 Service Manual

Table 5-16: 80A01 module replaceable parts list

Fig. & Tektronix
index part
number number
5-15-1 384-1838-00
-2 214-4081-00
-3 211-3008-00
-4 015-1022-01
-5 335-0370-00
-6 211-0088-00
-7 380-1151-00
-8 211-0087-00
-9 333-4392-00
-10 335-0485-00

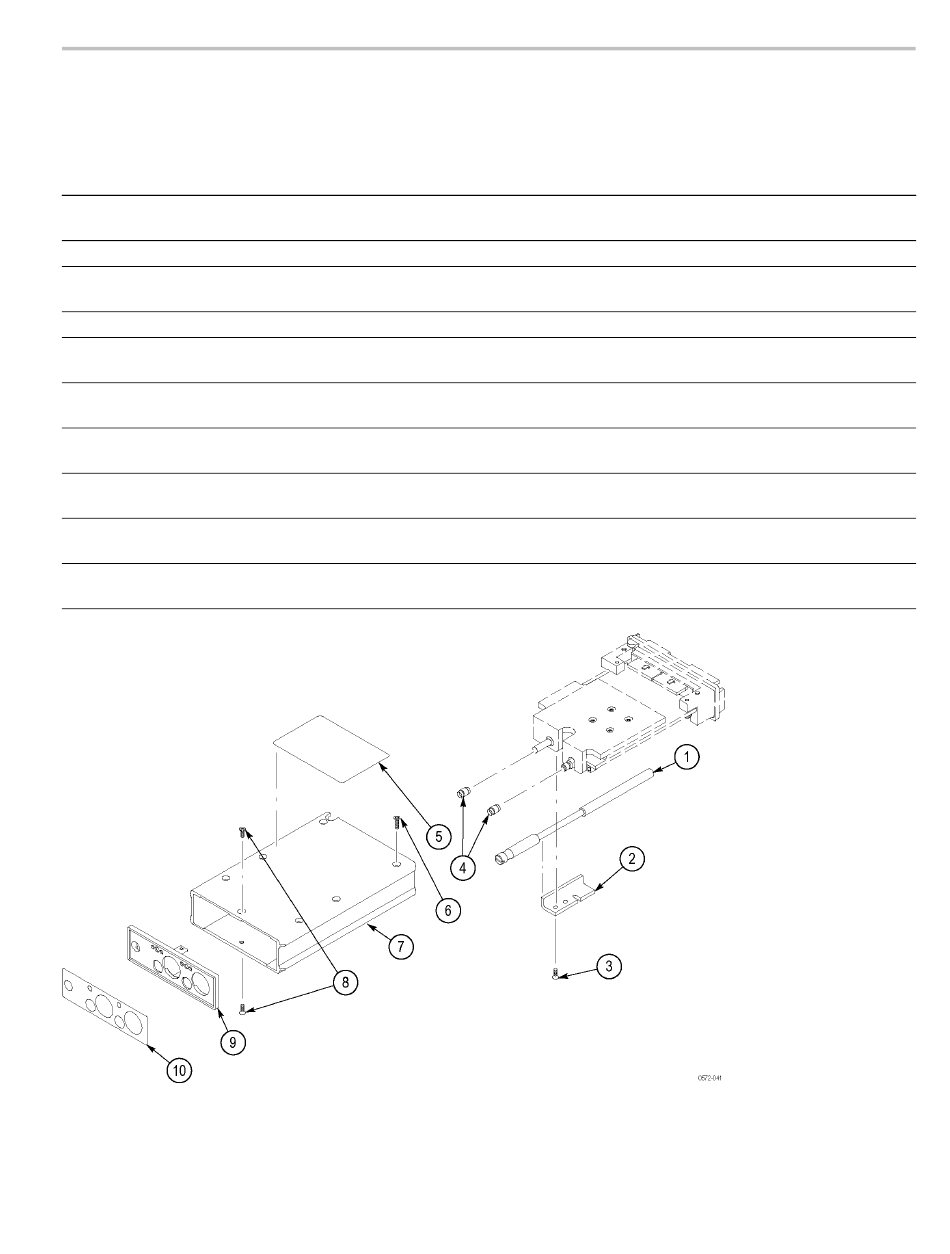

Figure 5-15: 80A01 module

DSA8300 Digital Serial Analyzer and Modules Service Manual
Serial Serial
number number
effective discont'd Qty Name & description
1 SHAFT: SCREW LOCKDOWN, 303 SST
R05HDSCR
1
LOCKDOWN: SCREW MOUNT, 0.080 AL
2 SCREW, MACHINE: 2-56 X 0.281, PNH, SST,
PASS, POZI DR
1
TERMINATOR: COAXIAL, 50 OHM, 0.5W, SMA
1 MARKER, IDENT: ANTI-STATIC LABEL, 0.005
POLY
8
SCREW, MACHINE: 2-56 X 0.281, FLH, 82 DEG,
STL BK OXD, POZ
1 HOUSING: SAMPLING MODULE, TRIGGER
PRESCALE LIMITING PREAMP
2 SCREW, MACHINE:2-56 X 0.188, FLH, 82 DEG
SST, POZ
1 PANEL,FRONT: TRIGGER PRESCALE LIMITING
PREAMP, AL ALLOY
1 MARKER, IDENT: LABEL, MKD 80A01 PRESCALE
MODULE, 2.760 X .810, LEXAN
Replaceable Parts List
5–25
