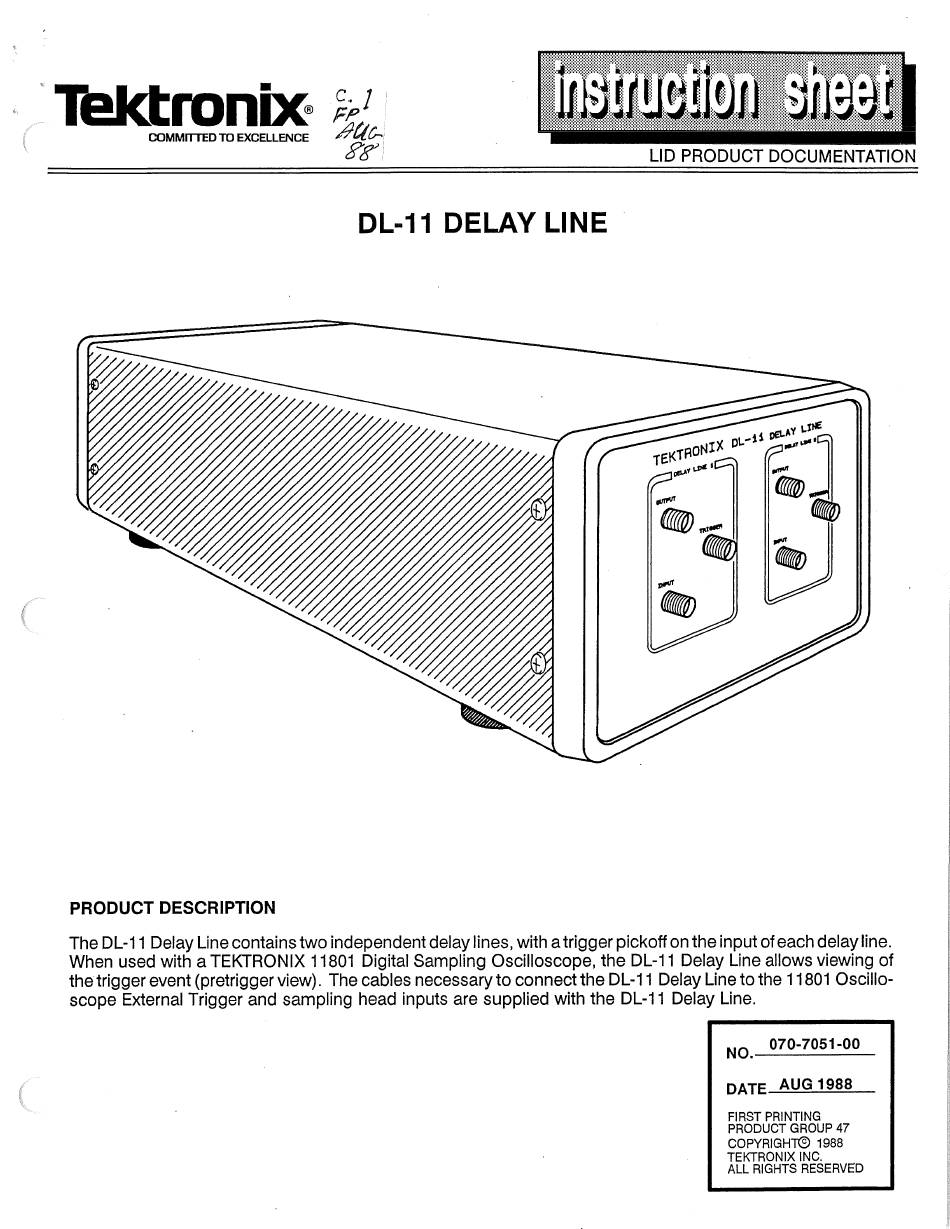

Tektronix DL-11 DELAY LINE Instruction Sheet

LID PRODUCT DOCUMENTATION
DL-11 DELAY LINE —
Ge
Y y
Li
PRODUCT DESCRIPTION

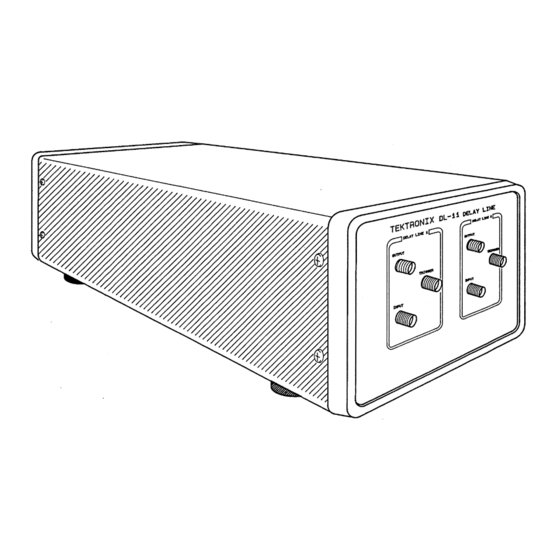

The DL-11 Delay Line contains two independent delay lines, with a trigger pickoff on the input of each delay line.
When used with a TEKTRONIX 11801 Digital Sampling Oscilloscope, the DL-11 Delay Line allows viewing of
the trigger event (pretrigger view). The cables necessary to connect the DL-11 Delay Line to the 11801 Oscillo-
scope External Trigger and sampling head inputs are supplied with the DL-11 Delay Line.
| NO. 070-7051-00
f
DATE_AUG 1988
FIRST PRINTING
PRODUCT GROUP 47
COPYRIGHT© 1988
TEKTRONIX INC.
ALL RIGHTS RESERVED
