Removal and Installation

Front-Panel Knobs

4–8
You will need angled-tip tweezers.
NOTE.
If you are not removing the front panel, you do not need to remove the
front-panel knobs; you can proceed to trim removal.
1. To remove a knob:
a. Hold the knob that you want to remove and pull it straight out from the
front panel about 1/4 inch to create some clearance between the base of
the knob and the front panel.
b. Insert the angled-tip tweezers between the knob and front panel and use
them to remove the knob. (See Figure 4-2 on page 4-8.)
c. For replacement knob part numbers, refer to the exploded view and
replaceable parts table. (See Figure 5-3 on page 5-9.)

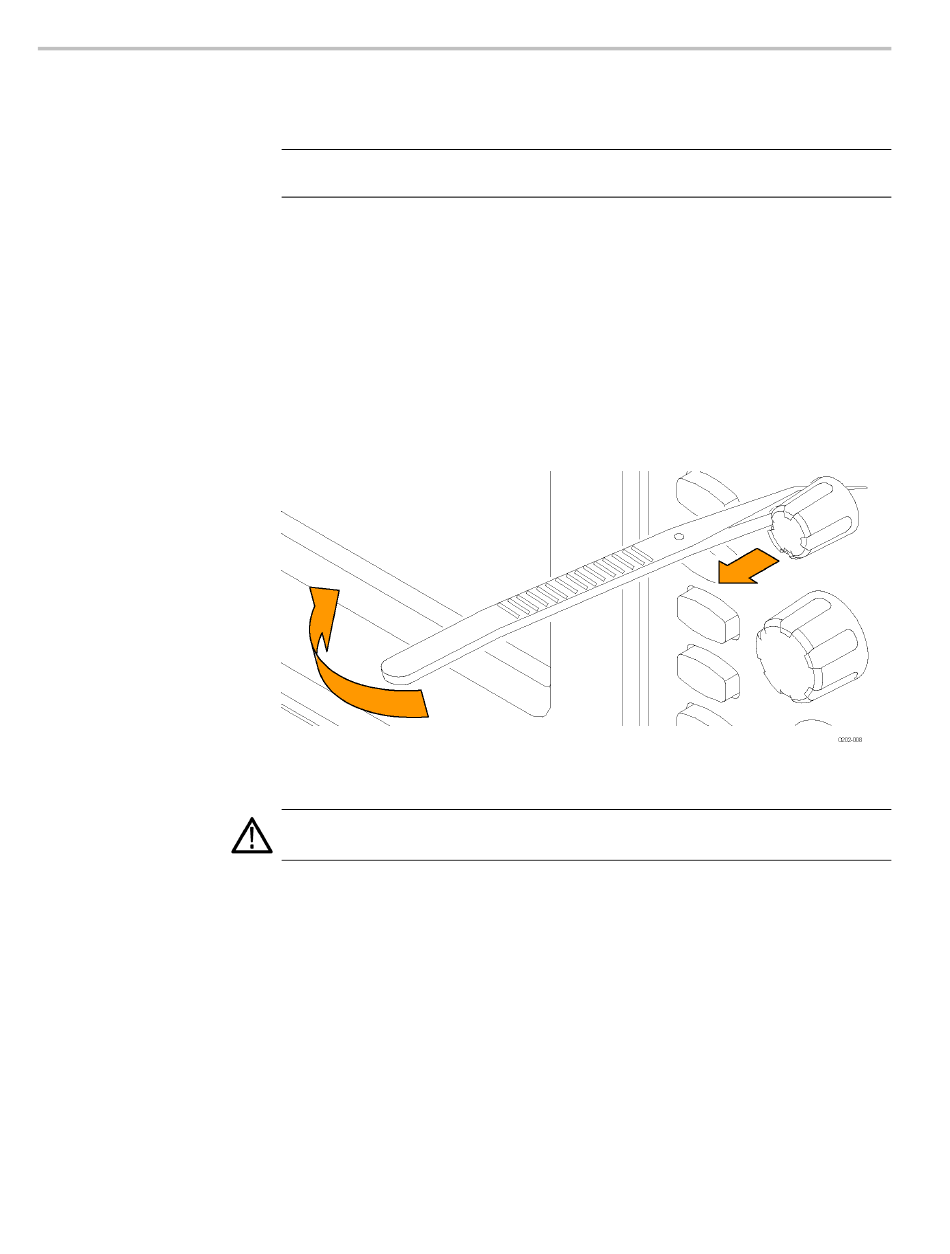

Figure 4-2: Knob removal

CAUTION. To prevent damage to the encoders located on the circuit board, apply
pressure to the backs of the encoders while pushing the knob on the shaft.
3. To reinstall a knob:
a. Align the knob to the shaft.
b. While applying pressure to the back of the encoder, push the knob in
until it snaps.
