Removal and Installation

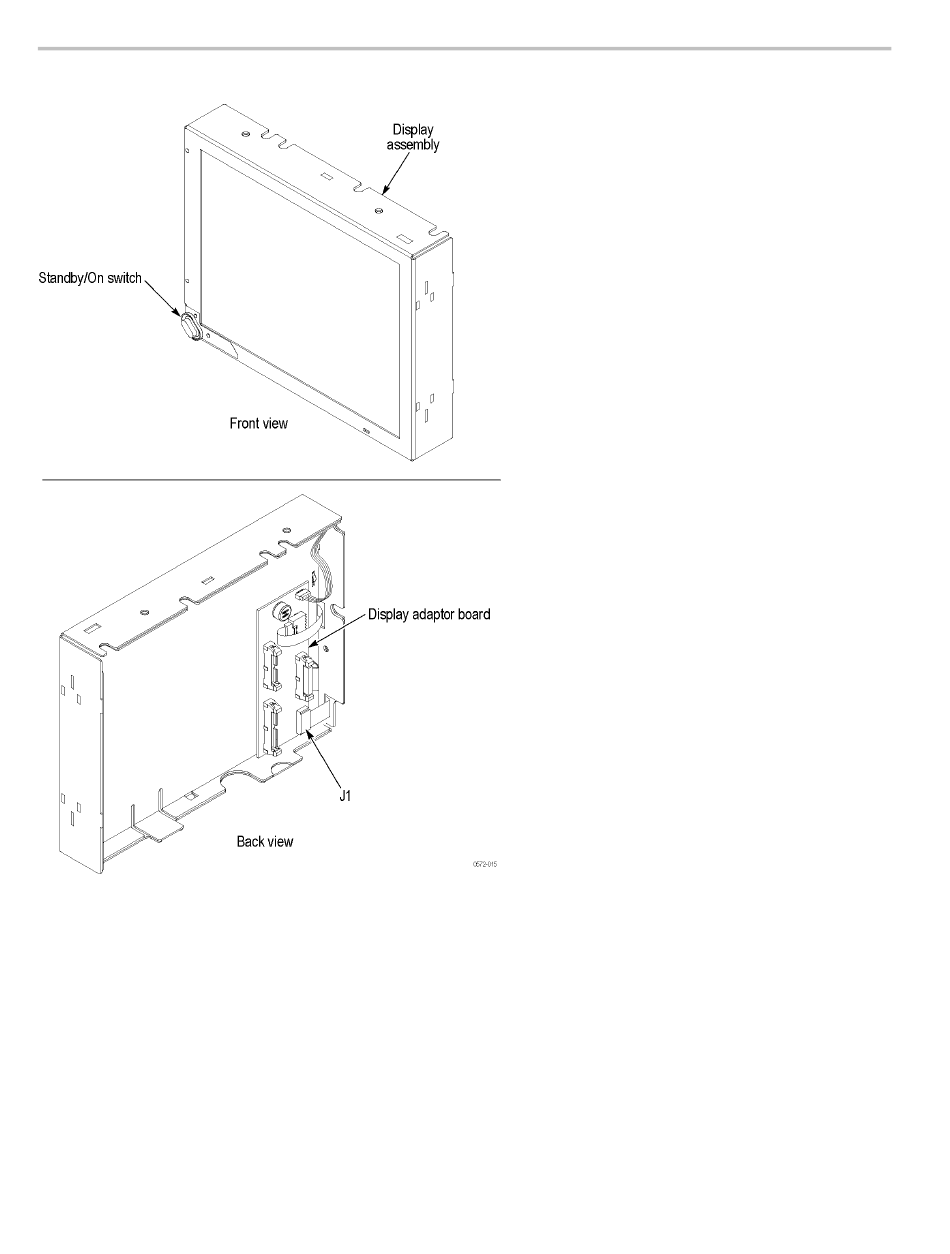

Figure 4-7: Display adaptor board replacement
Standby/On Switch Flex
Circuit
4–18
The Standby/On switch flex circuit is a part of the Display assembly, and is not
individually customer-replaceable. If this component must be replaced, you
must return the instrument to Tektronix for repair. See the Contacting Tektronix
information at the front of this manual. For reference, refer to the exploded view.
(See Figure 5-3.)
