2 outputs high level; when the instrument is under protection, pin 2 outputs low
level.

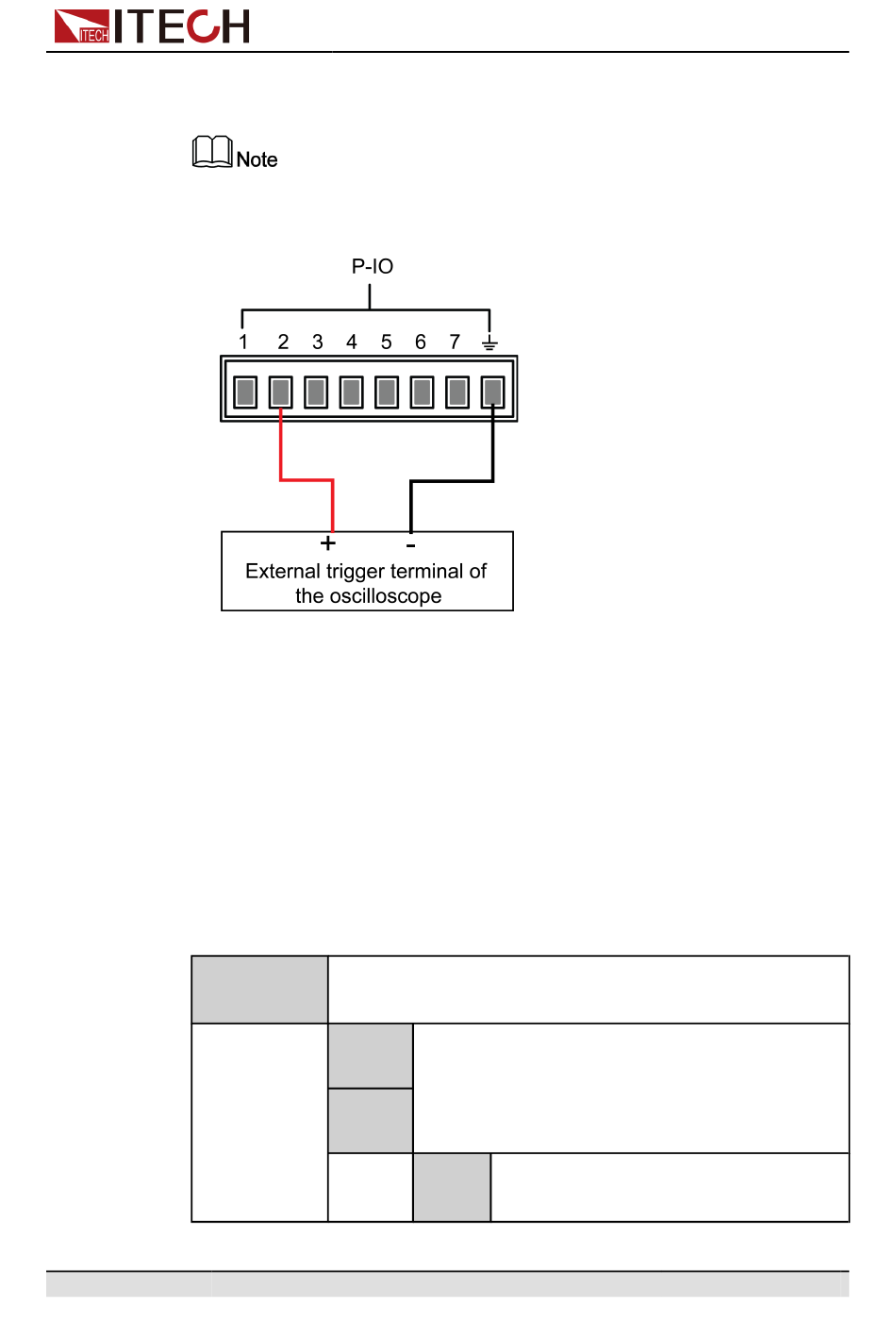

1. Refer to the figure below to connect pin 2 to the external oscilloscope.
2. Confirm that pin 2 function is set to the default option, namely
3. Taking OCP as an example, set the protection point of OCP.
4. Build the test environment to enable the instrument to enter the OCP state.
5. Check the oscilloscope and confirm that pin 2 outputs low level.
5.11.3 IO–3. Off-Status, Not-Invert
Parameter Description
IO–3. Off-Sta-
tus, Not-Invert
When pin 2 is set to Invert, the output level is completely opposite.
IO-2. Ps, Not-Invert.
Parameter setting for pin 3.
Not-
Invert
Invert
Copyright © Itech Electronic Co., Ltd.
Indicates whether to invert the input/output pulse
or level signal.
•
Invert: Yes
•
Not-Invert: No
Off-
This default function indicates the exist-
Status
ing [On/Off] state of the instrument.
Basic Operation
172
