Part 2: FPGA Chip

The FPGA development board uses Xilinx's KINTEX UltraScale
chip, model number XCKU040-2FFVA1156I. The speed class is 2 and the
temperature class is industrial. This model is a FFVA1156 package with 1156
pins and a 1.0mm pitch. The chip naming rules for Xilinx KINTEX UltraScale
FPGA are shown in Figure 2-1 below:

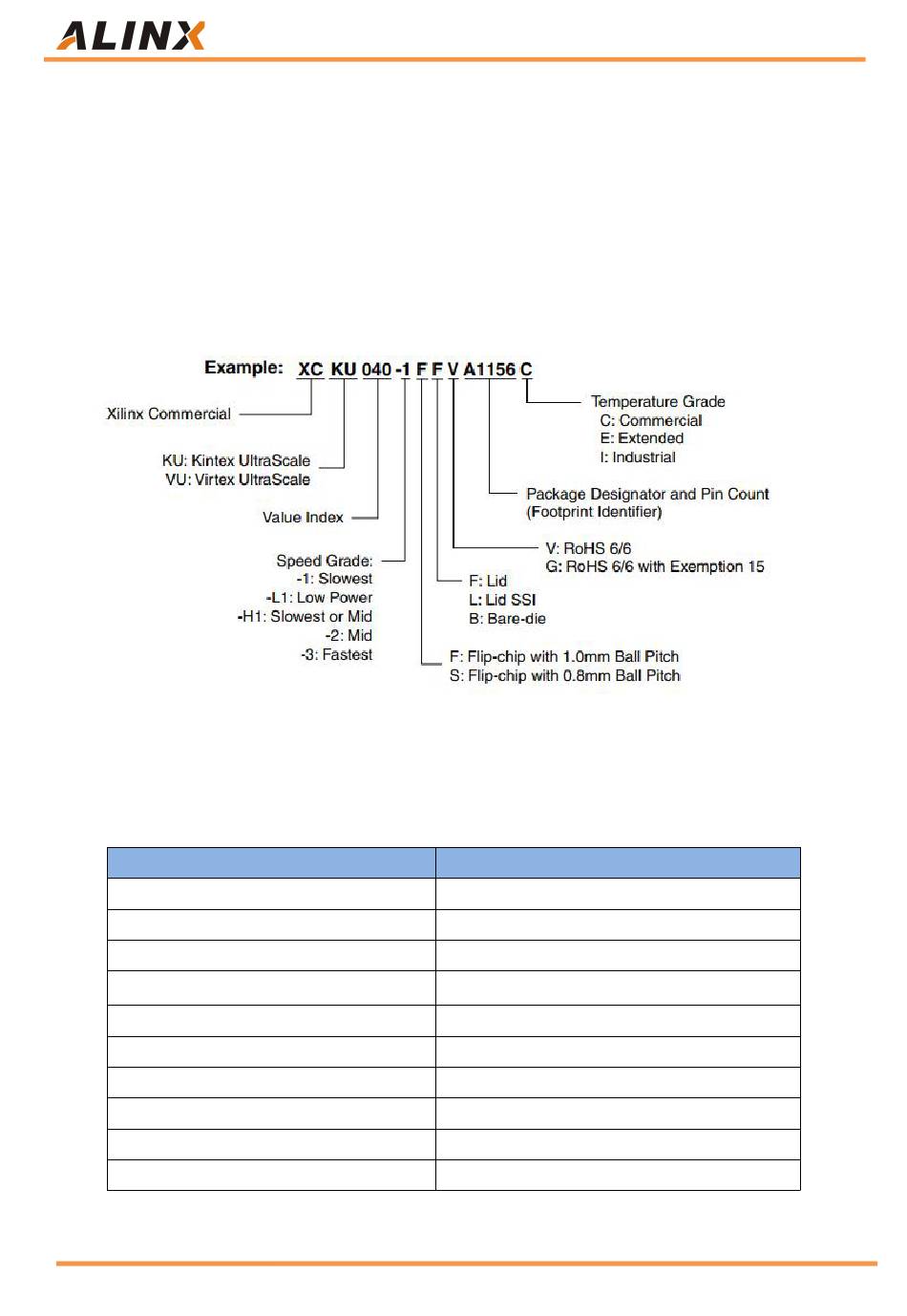

Figure 2-1: The Chip Model Definition of KINTEX UltraScale Series
The main parameters of the FPGA chip XCKU040 are as follows
CLB Look-Up-Tables
CLB flip-flops
Block RAM（kb）
PCIe Gen3 x 8
GTP Transceiver
Speed Grade
Temperature Grade
8 / 59
KINTEX UltraScale+ FPGA Board AXKU040 User Manual
Name
Logic Cells
DSP Slices
XADC
Specific parameters
530,250
242,400
41,600
21.1
1,920
3
12bit, 1Mbps AD
20, 16.3Gb/s max
-2
Industrial
