Part 1: FPGA Development Board Introduction

The AXKU040 FPGA development board is mainly composed of KINTEX
UltraScale+ chip. It meets users' requirements for high-speed data exchange,
data storage, Video transmission processing, deep learning, artificial
intelligence and industrial control, and it is a "professional" FPGA development
platform. For high-speed data transmission and exchange, pre-verification and
post-application of data processing is possible. This product is very suitable for
students, engineers and other groups engaged in FPGA development.
AXKU040 FPGA development board mounts four 1GB high-speed DDR4
SDRAM chips. FPGA chip configuration uses a 128Mb QSPI FLASH chip.
The AXKU040 FPGA development board expands the rich peripheral
interface, including four 10G optical SFP interfaces, three FMC expansion
interfaces, one UART serial interface, one SD card interface, one HDMI Output,
2 Gigabit Ethernet Interfaces, SAM and SATA Interfaces etc.
The following figure shows the structure of the entire development system:

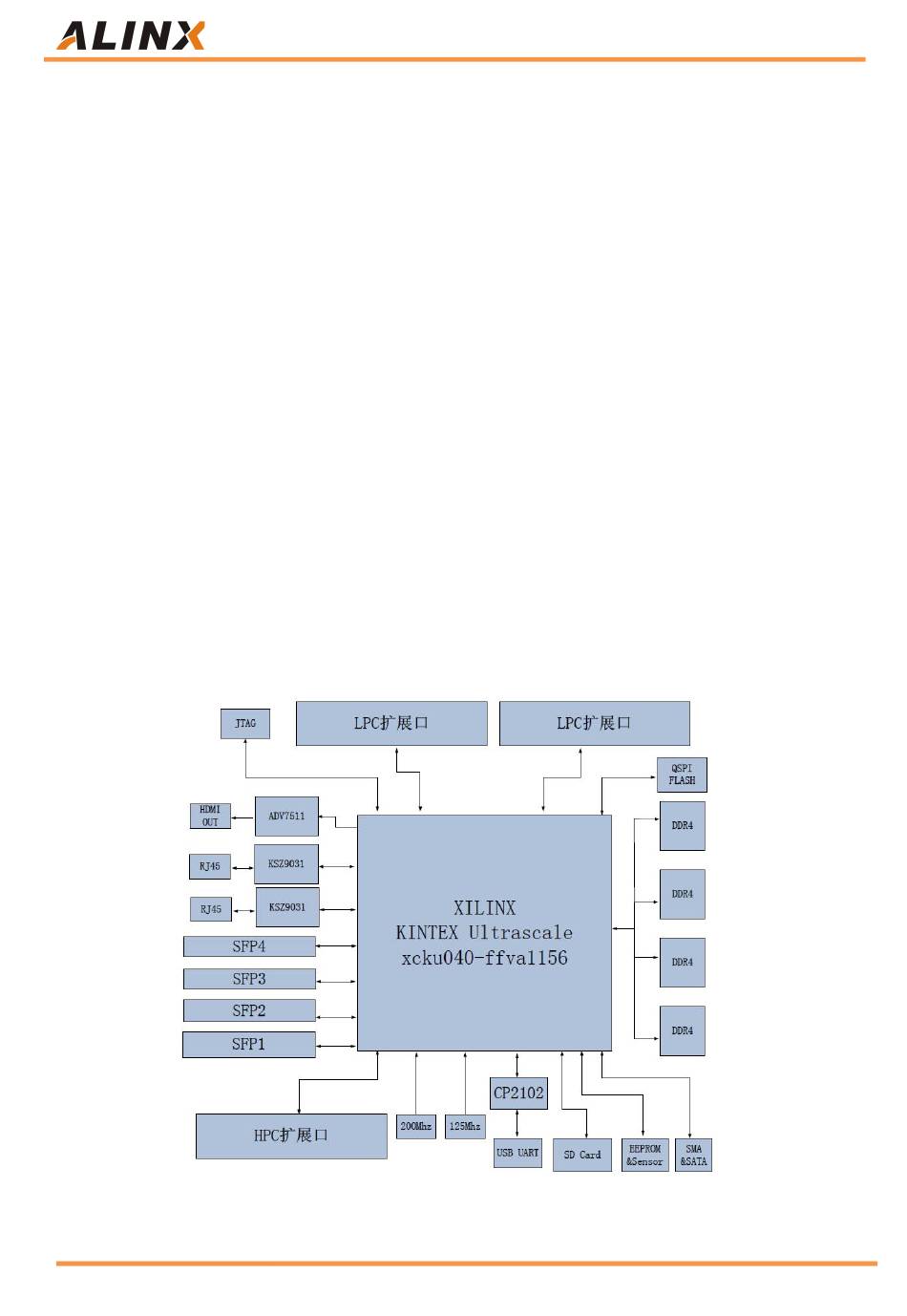

Figure 1-1: The Schematic Diagram of the AXKU040
