Part 13: Temperature Sensor

A high-precision, low-power, digital temperature sensor chip is mounted on
the AXKU040 FPGA development board, and the model is LM75 of ON
Semiconductor. The temperature accuracy of the LM75 chip is 0.5 degrees.
The sensor and FPGA are directly connected to the I2C digital interface. The
FPGA reads the temperature near the current FPGA development board
through the I2C interface. Figure 13-1 below shows the design of the LM75
sensor chip.
LM75 Sensor Pin Assignment
I2C_SDA_3V3
51 / 59
KINTEX UltraScale+ FPGA Board AXKU040 User Manual

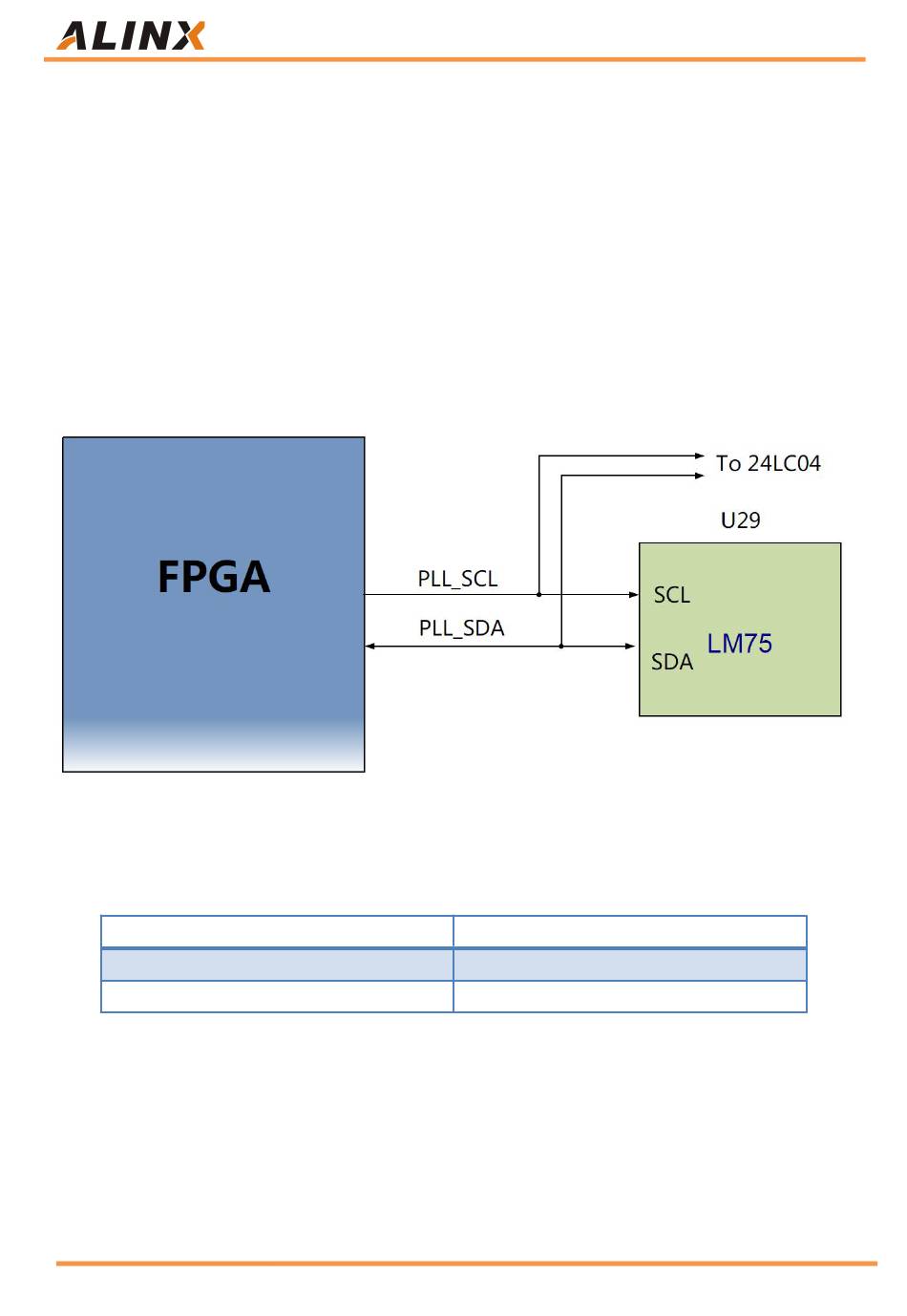

Figure 13-1: LM75 Sensor Schematic
Pin Name
I2C_SCL_3V3
FPGA Pin
P24
P25
