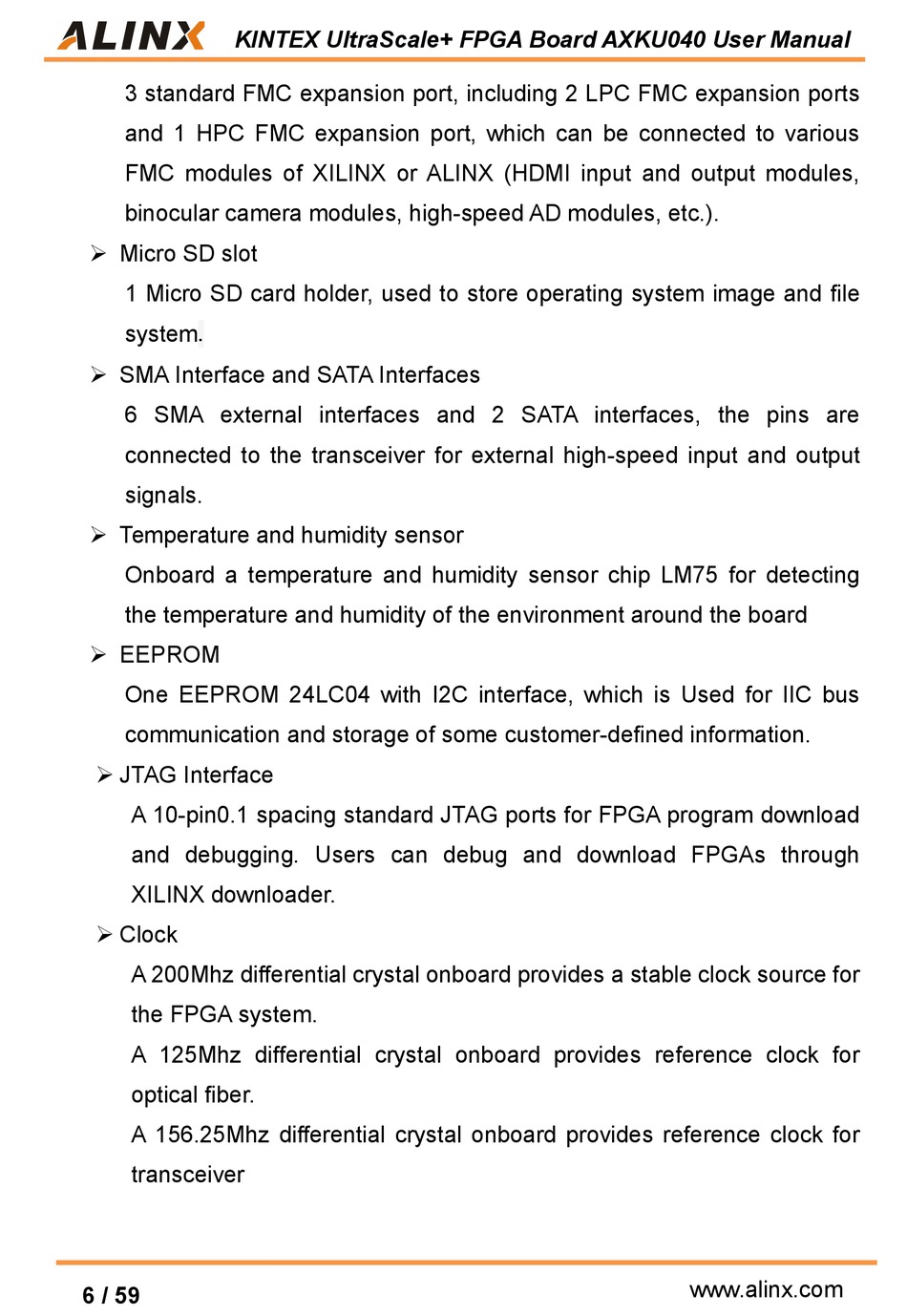

KINTEX UltraScale+ FPGA Board AXKU040 User Manual
3 standard FMC expansion port, including 2 LPC FMC expansion ports
and 1 HPC FMC expansion port, which can be connected to various
FMC modules of XILINX or ALINX (HDMI input and output modules,
binocular camera modules, high-speed AD modules, etc.).
 Micro SD slot
1 Micro SD card holder, used to store operating system image and file
system.
 SMA Interface and SATA Interfaces
6 SMA external interfaces and 2 SATA interfaces, the pins are
connected to the transceiver for external high-speed input and output
signals.
 Temperature and humidity sensor
Onboard a temperature and humidity sensor chip LM75 for detecting
the temperature and humidity of the environment around the board
 EEPROM
One EEPROM 24LC04 with I2C interface, which is Used for IIC bus
communication and storage of some customer-defined information.
 JTAG Interface
A 10-pin0.1 spacing standard JTAG ports for FPGA program download
and debugging. Users can debug and download FPGAs through
XILINX downloader.
 Clock
A 200Mhz differential crystal onboard provides a stable clock source for
the FPGA system.
A 125Mhz differential crystal onboard provides reference clock for
optical fiber.
A 156.25Mhz differential crystal onboard provides reference clock for
transceiver
