Function Display - Icom IC-2100H Instruction Manual

1
PANEL DESCRIPTION

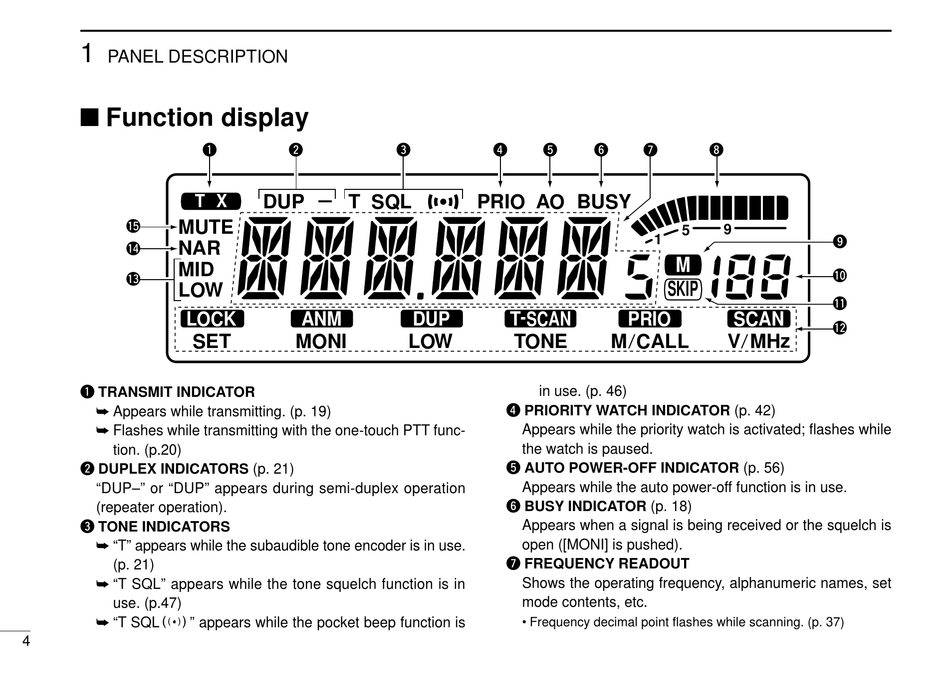

Function display

T X
!5
MUTE
!4
NAR
MID
!3
LOW
LOCK
SET
q TRANSMIT INDICATOR
Appears while transmitting. (p. 19)
Flashes while transmitting with the one-touch PTT func-
tion. (p.20)
w DUPLEX INDICATORS (p. 21)
"DUP–" or "DUP" appears during semi-duplex operation
(repeater operation).
e TONE INDICATORS
"T" appears while the subaudible tone encoder is in use.
(p. 21)
"T SQL" appears while the tone squelch function is in
use. (p.47)
"T SQLS" appears while the pocket beep function is
4
q w
DUP T SQL
ANM
MONI
e r t
PRIO AO BUSY
DUP T SCAN
LOW TONE
in use. (p. 46)
r PRIORITY WATCH INDICATOR (p. 42)
Appears while the priority watch is activated; flashes while
the watch is paused.
t AUTO POWER-OFF INDICATOR (p. 56)
Appears while the auto power-off function is in use.
y BUSY INDICATOR (p. 18)
Appears when a signal is being received or the squelch is
open ([MONI] is pushed).
u FREQUENCY READOUT
Shows the operating frequency, alphanumeric names, set
mode contents, etc.
• Frequency decimal point flashes while scanning. (p. 37)
y u i
9
5
1
M
SKIP
PRIO SCAN
M / CALL V MHz /
