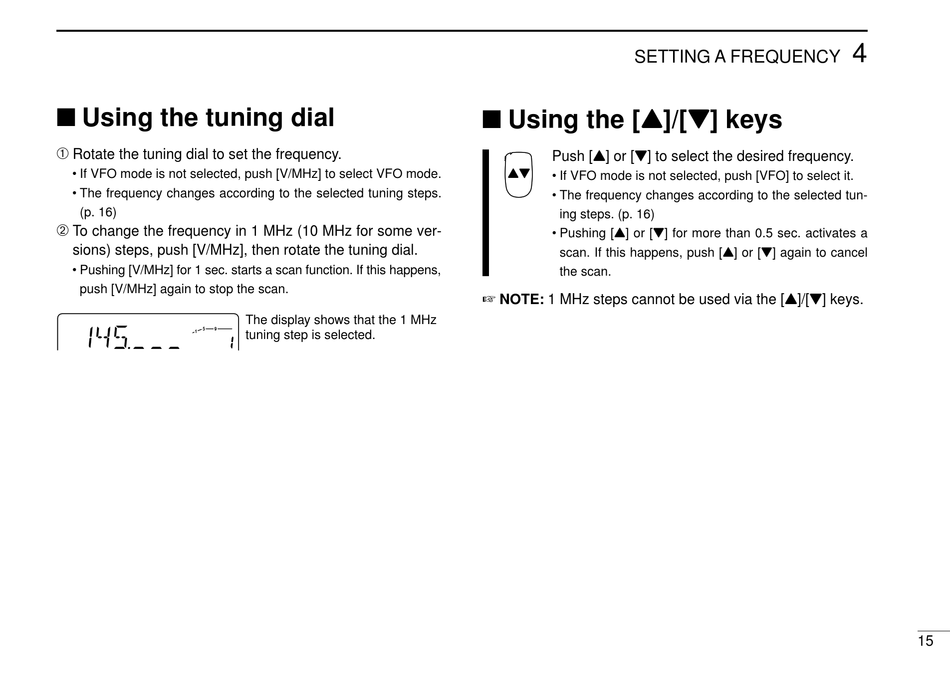

Using the tuning dial

Rotate the tuning dial to set the frequency.
• If VFO mode is not selected, push [V/MHz] to select VFO mode.
• The frequency changes according to the selected tuning steps.
(p. 16)
To change the frequency in 1 MHz (10 MHz for some ver-
sions) steps, push [V/MHz], then rotate the tuning dial.
• Pushing [V/MHz] for 1 sec. starts a scan function. If this happens,
push [V/MHz] again to stop the scan.
The display shows that the 1 MHz
9
5
1 tuning step is selected.
SETTING A FREQUENCY

Using the [Y]/[Z] keys

Push [Y] or [Z] to select the desired frequency.
YZ
• If VFO mode is not selected, push [VFO] to select it.
• The frequency changes according to the selected tun-
ing steps. (p. 16)
• Pushing [Y] or [Z] for more than 0.5 sec. activates a
scan. If this happens, push [Y] or [Z] again to cancel
the scan.
NOTE: 1 MHz steps cannot be used via the [Y]/[Z] keys.
