9
SCAN OPERATION

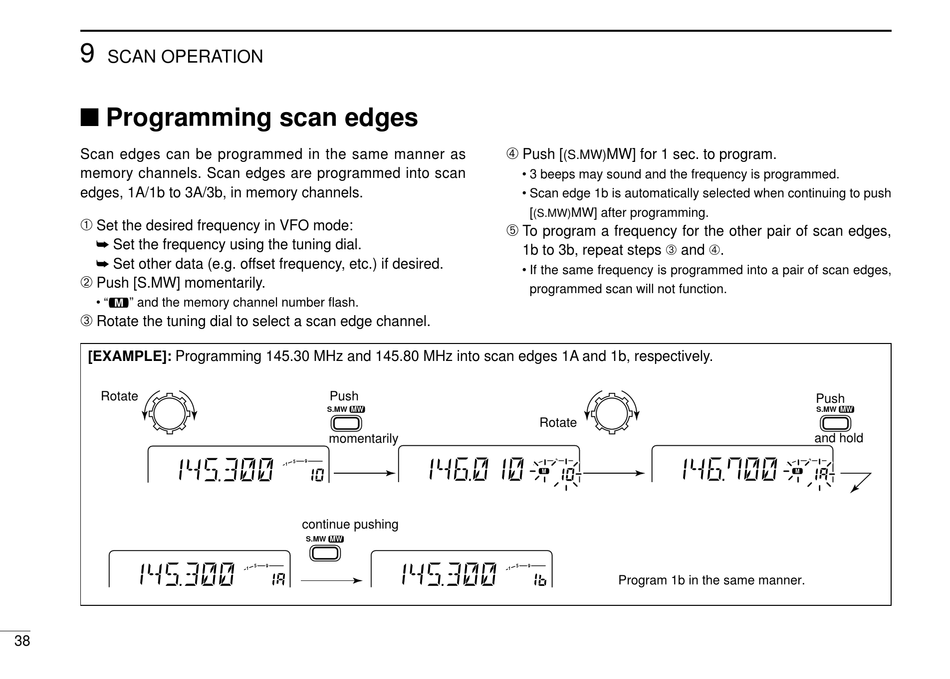

Programming scan edges

Scan edges can be programmed in the same manner as
memory channels. Scan edges are programmed into scan
edges, 1A/1b to 3A/3b, in memory channels.
Set the desired frequency in VFO mode:
Set the frequency using the tuning dial.
Set other data (e.g. offset frequency, etc.) if desired.
Push [S.MW] momentarily.
• "!" and the memory channel number flash.
Rotate the tuning dial to select a scan edge channel.
[EXAMPLE]: Programming 145.30 MHz and 145.80 MHz into scan edges 1A and 1b, respectively.
Rotate
X
38
Push
S.MW
MW
momentarily
5 9
1
continue pushing
S.MW MW
5 9
1
Push [ MW] for 1 sec. to program.
(S.MW)
• 3 beeps may sound and the frequency is programmed.
• Scan edge 1b is automatically selected when continuing to push
[ MW] after programming.
(S.MW)
To program a frequency for the other pair of scan edges,
1b to 3b, repeat steps and
• If the same frequency is programmed into a pair of scan edges,
programmed scan will not function.
Rotate
5 9
1
M
5 9
1
Program 1b in the same manner.
.
Push
S.MW
MW
and hold
5 9
1
M
