13
WIRELESS OPERATION
Microphone
address
The transceiver has 8 possible microphone addresses (in-
cluding OFF) to help prevent interference from other HM-90
wireless microphones. Set both the microphone address and
microphone dip switch to the same value as follows.
NOTE: When the supplied microphone is connected, the
transceiver rejects control signals from the HM-90 even
when the microphone address is matched.
D Microphone address
Push [PWR] to turn power OFF.
While pushing [SET], turn power ON to enter initial set
mode.
Push [SET] one or more
times to select the "ADR"
display as shown at right.
Rotate the tuning dial to set
the microphone address to
0–7 or to turn the microphone control OFF.
• When "ADR--OF" is selected, the transceiver rejects all control
signals from the HM-90.
Push [PWR] to turn power OFF and exit initial set mode.
54
INITIAL SET MODE
USING

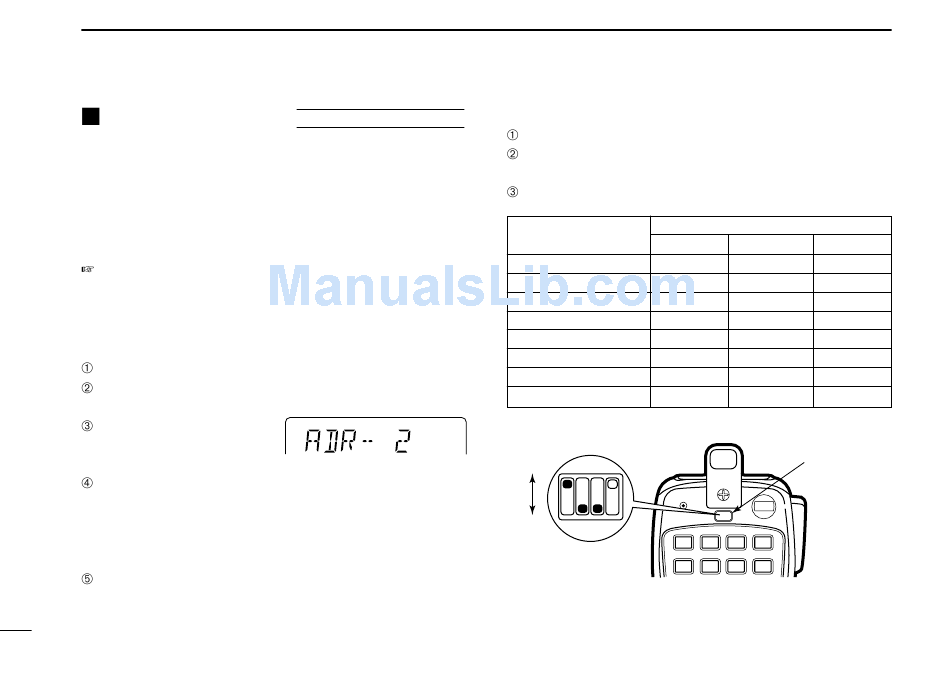

The display shows the address
is set to 2.
D Microphone dip switch
Remove the switch cover from the microphone rear panel.
Set the microphone dip switch and the microphone ad-
dress to the same value as shown below.
Replace the switch cover.
MICROPHONE
ADDRESS S1-1
ADR-0 OFF
ADR-1 (default) ON
ADR-2 OFF
ADR-3 ON
ADR-4 OFF
ADR-5 ON
ADR-6 OFF
ADR-7 ON
(S1)
Dip switch
1 2 3
ON
OFF
AFC
CALL
1
PGR
HIGH
4
DIP SWITCH
S1-2 S1-3
OFF OFF
OFF OFF
ON OFF
ON OFF
OFF ON
OFF ON
ON ON
ON ON
Switch cover
LOCK
AFC-OFF PTT-M MW
MR VFO CLR
2 3 A
C-SQL DTMF D-OFF
MID LOW SET
5 6 B
