1

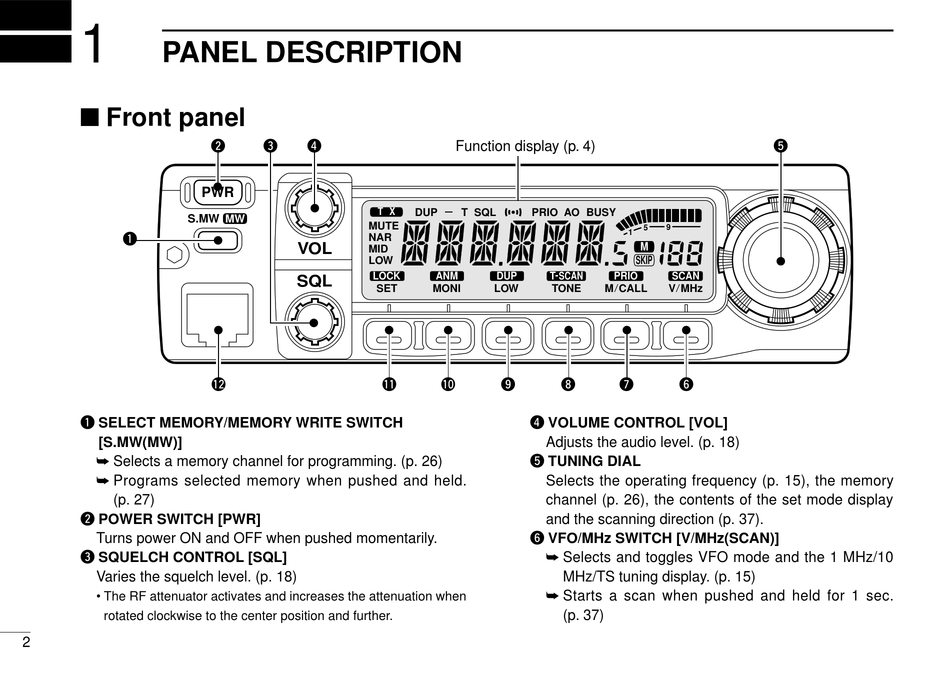

PANEL DESCRIPTION

Front panel

PWR
S.MW
q
q SELECT MEMORY/MEMORY WRITE SWITCH
[S.MW(MW)]
Selects a memory channel for programming. (p. 26)
Programs selected memory when pushed and held.
(p. 27)
w POWER SWITCH [PWR]
Turns power ON and OFF when pushed momentarily.
e SQUELCH CONTROL [SQL]
Varies the squelch level. (p. 18)
• The RF attenuator activates and increases the attenuation when
rotated clockwise to the center position and further.
2
w e r
T X
MW
MUTE
NAR
VOL
MID
LOW
LOCK
SQL
SET
!2 !1
Function display (p. 4)
DUP T SQL PRIO AO BUSY
ANM DUP T SCAN
MONI LOW TONE
!0 o i
r VOLUME CONTROL [VOL]
Adjusts the audio level. (p. 18)
t TUNING DIAL
Selects the operating frequency (p. 15), the memory
channel (p. 26), the contents of the set mode display
and the scanning direction (p. 37).
y VFO/MHz SWITCH [V/MHz(SCAN)]
Selects and toggles VFO mode and the 1 MHz/10
MHz/TS tuning display. (p. 15)
Starts a scan when pushed and held for 1 sec.
(p. 37)
t
9
5
1
M
SKIP
PRIO SCAN
M / CALL V MHz /
u y
