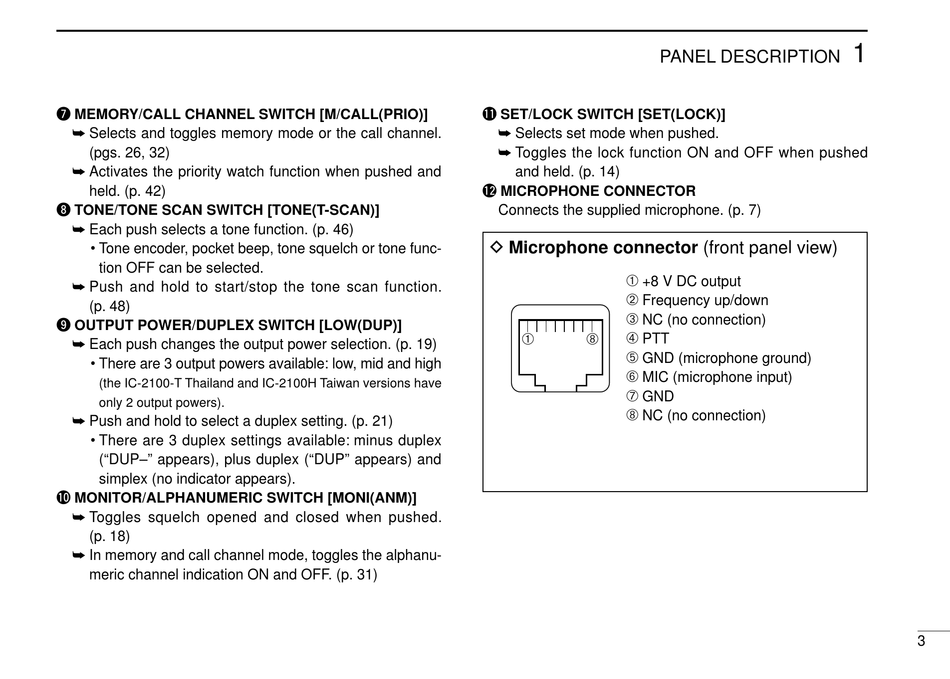

Icom IC-2100H Instruction Manual page 7

u MEMORY/CALL CHANNEL SWITCH [M/CALL(PRIO)]
Selects and toggles memory mode or the call channel.
(pgs. 26, 32)
Activates the priority watch function when pushed and
held. (p. 42)
i TONE/TONE SCAN SWITCH [TONE(T-SCAN)]
Each push selects a tone function. (p. 46)
• Tone encoder, pocket beep, tone squelch or tone func-
tion OFF can be selected.
Push and hold to start/stop the tone scan function.
(p. 48)
o OUTPUT POWER/DUPLEX SWITCH [LOW(DUP)]
Each push changes the output power selection. (p. 19)
• There are 3 output powers available: low, mid and high
(the IC-2100-T Thailand and IC-2100H Taiwan versions have
only 2 output powers).
Push and hold to select a duplex setting. (p. 21)
• There are 3 duplex settings available: minus duplex
("DUP–" appears), plus duplex ("DUP" appears) and
simplex (no indicator appears).
!0 MONITOR/ALPHANUMERIC SWITCH [MONI(ANM)]
Toggles squelch opened and closed when pushed.
(p. 18)
In memory and call channel mode, toggles the alphanu-
meric channel indication ON and OFF. (p. 31)
PANEL DESCRIPTION
!1 SET/LOCK SWITCH [SET(LOCK)]
Selects set mode when pushed.
Toggles the lock function ON and OFF when pushed
and held. (p. 14)
!2 MICROPHONE CONNECTOR
Connects the supplied microphone. (p. 7)
D Microphone connector (front panel view)
+8 V DC output
Frequency up/down
NC (no connection)
PTT
GND (microphone ground)
MIC (microphone input)
GND
NC (no connection)
