Microphone - Icom IC-2100H Instruction Manual

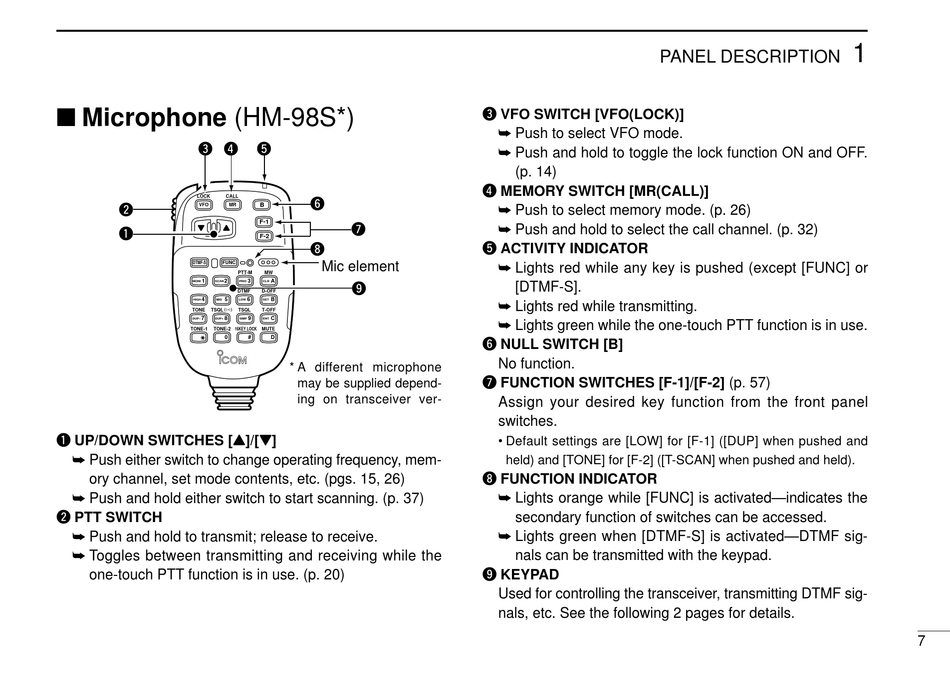

Microphone (HM-98S*)
e r
LOCK CALL
w
VFO MR
q
DTMF-S FUNC
1 2
MONI SCAN
4 5
HIGH MID
TONE TSQLS
7 8
DUP– DUP+
TONE-1 TONE-2 16KEY LOCK
0
q UP/DOWN SWITCHES [Y]/[Z]
Push either switch to change operating frequency, mem-
ory channel, set mode contents, etc. (pgs. 15, 26)
Push and hold either switch to start scanning. (p. 37)
w PTT SWITCH
Push and hold to transmit; release to receive.
Toggles between transmitting and receiving while the
one-touch PTT function is in use. (p. 20)
t
y
B
F-1
u
F-2
i
Mic element
PTT-M MW
3 A
PRIO CLR o
DTMF D-OFF
6 B
LOW SET
TSQL T-OFF
9 C
SIMP ENT
MUTE
# D
* A different microphone
may be supplied depend-
ing on transceiver ver-
PANEL DESCRIPTION
e VFO SWITCH [VFO(LOCK)]
Push to select VFO mode.
Push and hold to toggle the lock function ON and OFF.
(p. 14)
r MEMORY SWITCH [MR(CALL)]
Push to select memory mode. (p. 26)
Push and hold to select the call channel. (p. 32)
t ACTIVITY INDICATOR
Lights red while any key is pushed (except [FUNC] or
[DTMF-S].
Lights red while transmitting.
Lights green while the one-touch PTT function is in use.
y NULL SWITCH [B]
No function.
u FUNCTION SWITCHES [F-1]/[F-2] (p. 57)
Assign your desired key function from the front panel
switches.
• Default settings are [LOW] for [F-1] ([DUP] when pushed and
held) and [TONE] for [F-2] ([T-SCAN] when pushed and held).
i FUNCTION INDICATOR
Lights orange while [FUNC] is activated—indicates the
secondary function of switches can be accessed.
Lights green when [DTMF-S] is activated—DTMF sig-
nals can be transmitted with the keypad.
o KEYPAD
Used for controlling the transceiver, transmitting DTMF sig-
nals, etc. See the following 2 pages for details.
1
7
