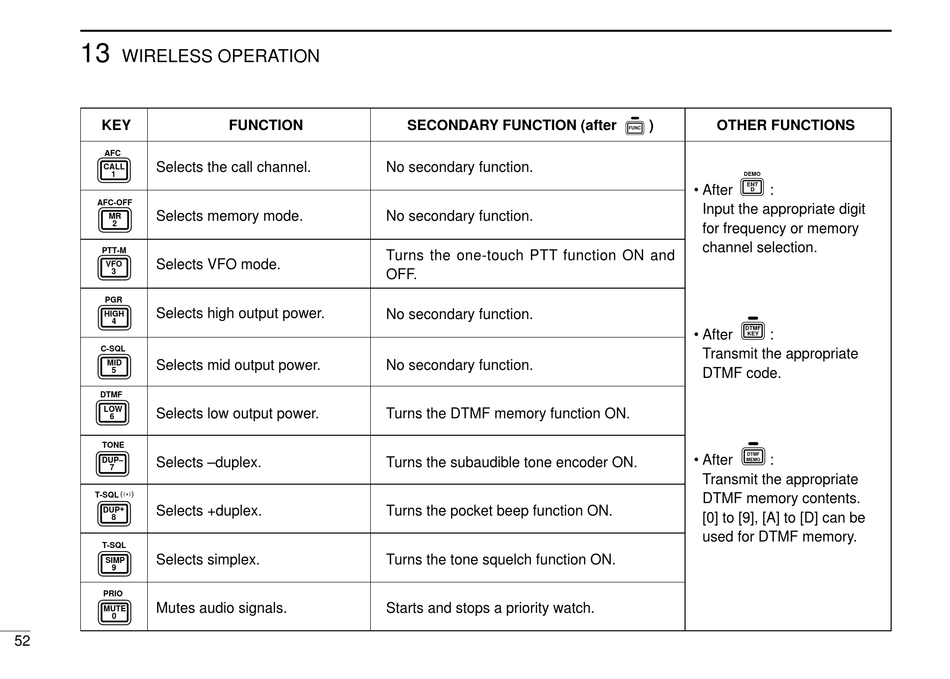

13
WIRELESS OPERATION
KEY
AFC
Selects the call channel.
CALL
1
AFC-OFF
Selects memory mode.
MR
2
PTT-M
Selects VFO mode.
VFO
3
PGR
Selects high output power.
HIGH
4
C-SQL
MID
Selects mid output power.
5
DTMF
LOW
Selects low output power.
6
TONE
DUP–
Selects –duplex.
7
T-SQLS
DUP +
Selects +duplex.
8
T-SQL
Selects simplex.
SIMP
9
PRIO
Mutes audio signals.
MUTE
0
52
FUNCTION
SECONDARY FUNCTION (after
No secondary function.
No secondary function.
Turns the one-touch PTT function ON and
OFF.
No secondary function.
No secondary function.
Turns the DTMF memory function ON.
Turns the subaudible tone encoder ON.
Turns the pocket beep function ON.
Turns the tone squelch function ON.
Starts and stops a priority watch.
)
OTHER FUNCTIONS
FUNC
DEMO
ENT
• After
:
D
Input the appropriate digit
for frequency or memory
channel selection.
DTMF
• After
:
KEY
Transmit the appropriate
DTMF code.
DTMF
• After
:
MEMO
Transmit the appropriate
DTMF memory contents.
[0] to [9], [A] to [D] can be
used for DTMF memory.
