PANEL DESCRIPTION

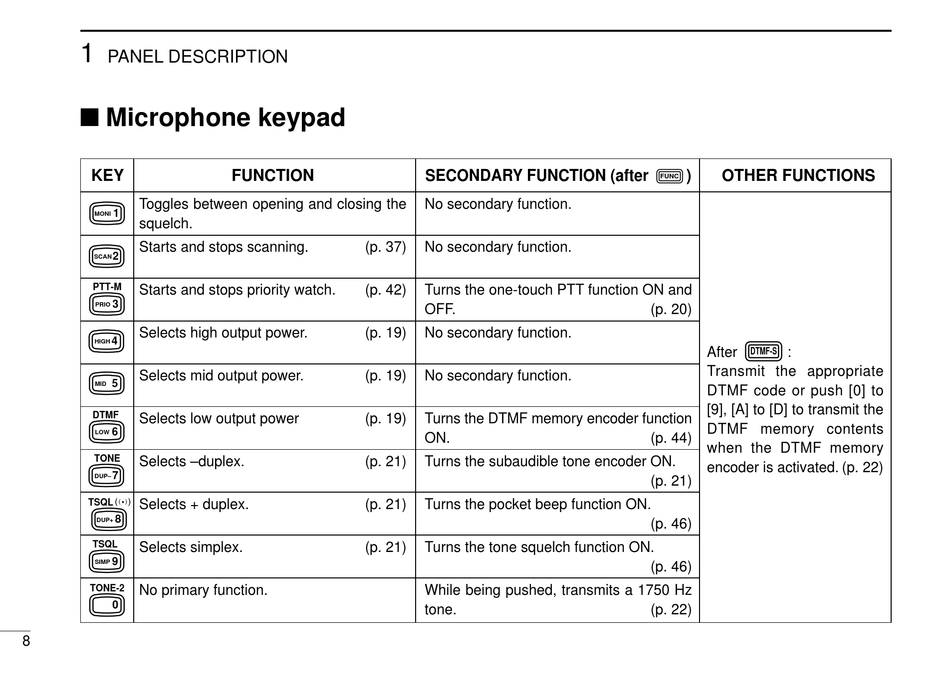

Microphone keypad

KEY
Toggles between opening and closing the
1
MONI
squelch.
Starts and stops scanning.
2
SCAN
PTT-M Starts and stops priority watch.
3
PRIO
Selects high output power.
4
HIGH
Selects mid output power.
5
MID
DTMF
Selects low output power
6
LOW
TONE
Selects –duplex.
7
DUP–
TSQLS Selects + duplex.
8
DUP+
TSQL
Selects simplex.
9
SIMP
TONE-2 No primary function.
0
8
FUNCTION
(p. 37)
(p. 42)
(p. 19)
(p. 19)
(p. 19)
(p. 21)
(p. 21)
(p. 21)
SECONDARY FUNCTION (after
No secondary function.
No secondary function.
Turns the one-touch PTT function ON and
OFF.
No secondary function.
No secondary function.
Turns the DTMF memory encoder function
ON.
Turns the subaudible tone encoder ON.
Turns the pocket beep function ON.
Turns the tone squelch function ON.
While being pushed, transmits a 1750 Hz
tone.
) OTHER FUNCTIONS
FUNC
(p. 20)
After :
DTMF-S
Transmit the appropriate
DTMF code or push [0] to
[9], [A] to [D] to transmit the
DTMF memory contents
(p. 44)
when the DTMF memory
encoder is activated. (p. 22)
(p. 21)
(p. 46)
(p. 46)
(p. 22)
