1
PANEL DESCRIPTION

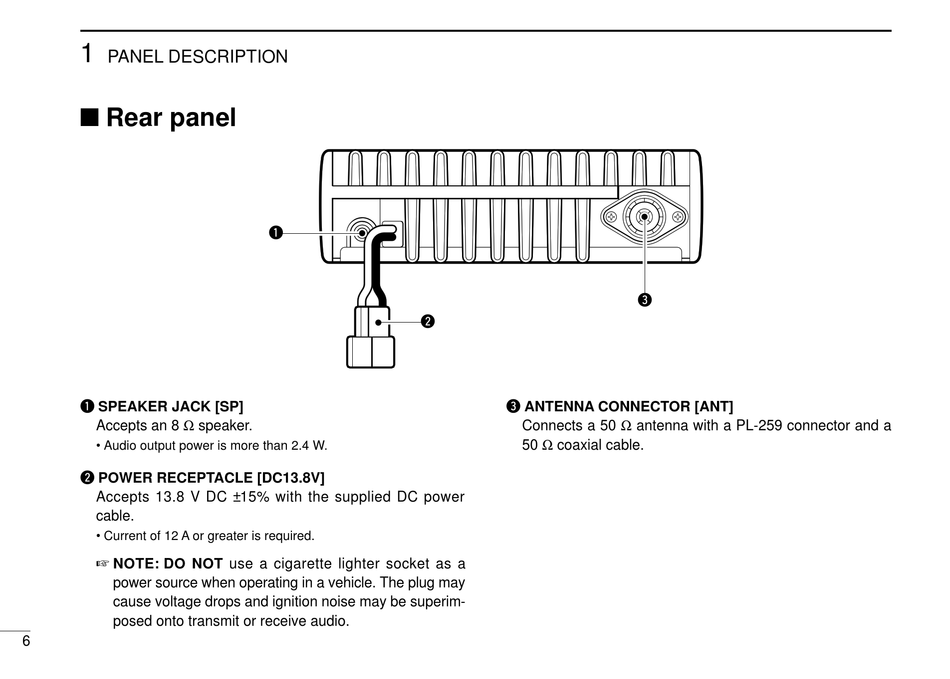

Rear panel

q SPEAKER JACK [SP]
Accepts an 8 speaker.
• Audio output power is more than 2.4 W.
w POWER RECEPTACLE [DC13.8V]
Accepts 13.8 V DC ±15% with the supplied DC power
cable.
• Current of 12 A or greater is required.
NOTE: DO NOT use a cigarette lighter socket as a
power source when operating in a vehicle. The plug may
cause voltage drops and ignition noise may be superim-
posed onto transmit or receive audio.
6
q
w
e
e ANTENNA CONNECTOR [ANT]
Connects a 50 antenna with a PL-259 connector and a
50 coaxial cable.
