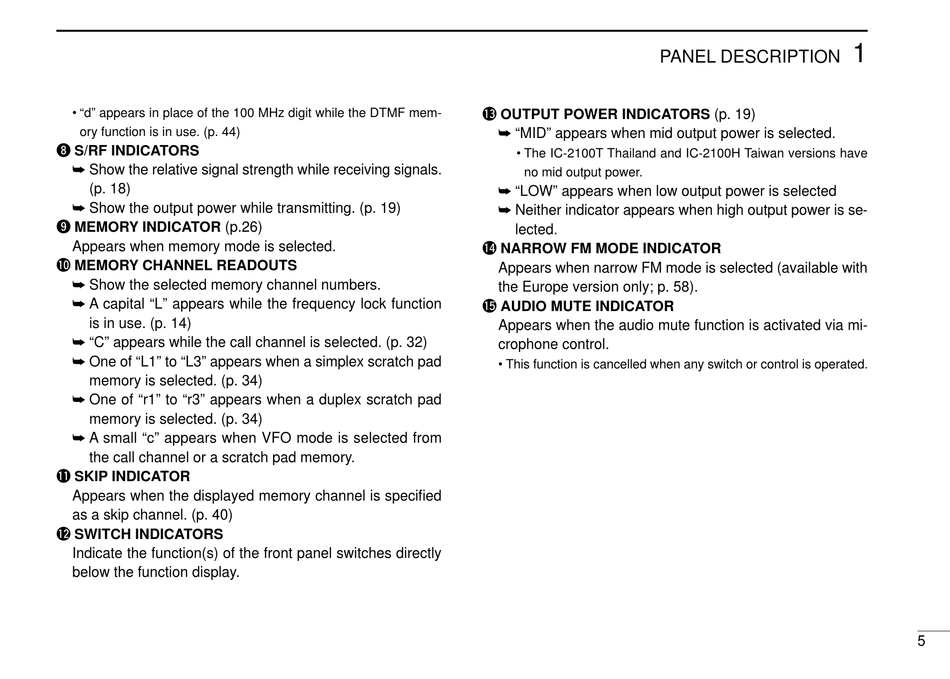

• "d" appears in place of the 100 MHz digit while the DTMF mem-
ory function is in use. (p. 44)
i S/RF INDICATORS
Show the relative signal strength while receiving signals.
(p. 18)
Show the output power while transmitting. (p. 19)
o MEMORY INDICATOR (p.26)
Appears when memory mode is selected.
!0 MEMORY CHANNEL READOUTS
Show the selected memory channel numbers.
A capital "L" appears while the frequency lock function
is in use. (p. 14)
"C" appears while the call channel is selected. (p. 32)
One of "L1" to "L3" appears when a simplex scratch pad
memory is selected. (p. 34)
One of "r1" to "r3" appears when a duplex scratch pad
memory is selected. (p. 34)
A small "c" appears when VFO mode is selected from
the call channel or a scratch pad memory.
!1 SKIP INDICATOR
Appears when the displayed memory channel is specified
as a skip channel. (p. 40)
!2 SWITCH INDICATORS
Indicate the function(s) of the front panel switches directly
below the function display.
PANEL DESCRIPTION
!3 OUTPUT POWER INDICATORS (p. 19)
"MID" appears when mid output power is selected.
• The IC-2100T Thailand and IC-2100H Taiwan versions have
no mid output power.
"LOW" appears when low output power is selected
Neither indicator appears when high output power is se-
lected.
!4 NARROW FM MODE INDICATOR
Appears when narrow FM mode is selected (available with
the Europe version only; p. 58).
!5 AUDIO MUTE INDICATOR
Appears when the audio mute function is activated via mi-
crophone control.
• This function is cancelled when any switch or control is operated.
