Fuse Panel - Manitowoc Grove RT530E-2 Service And Maintenance Manual

ELECTRIC SYSTEM

Fuse Panel

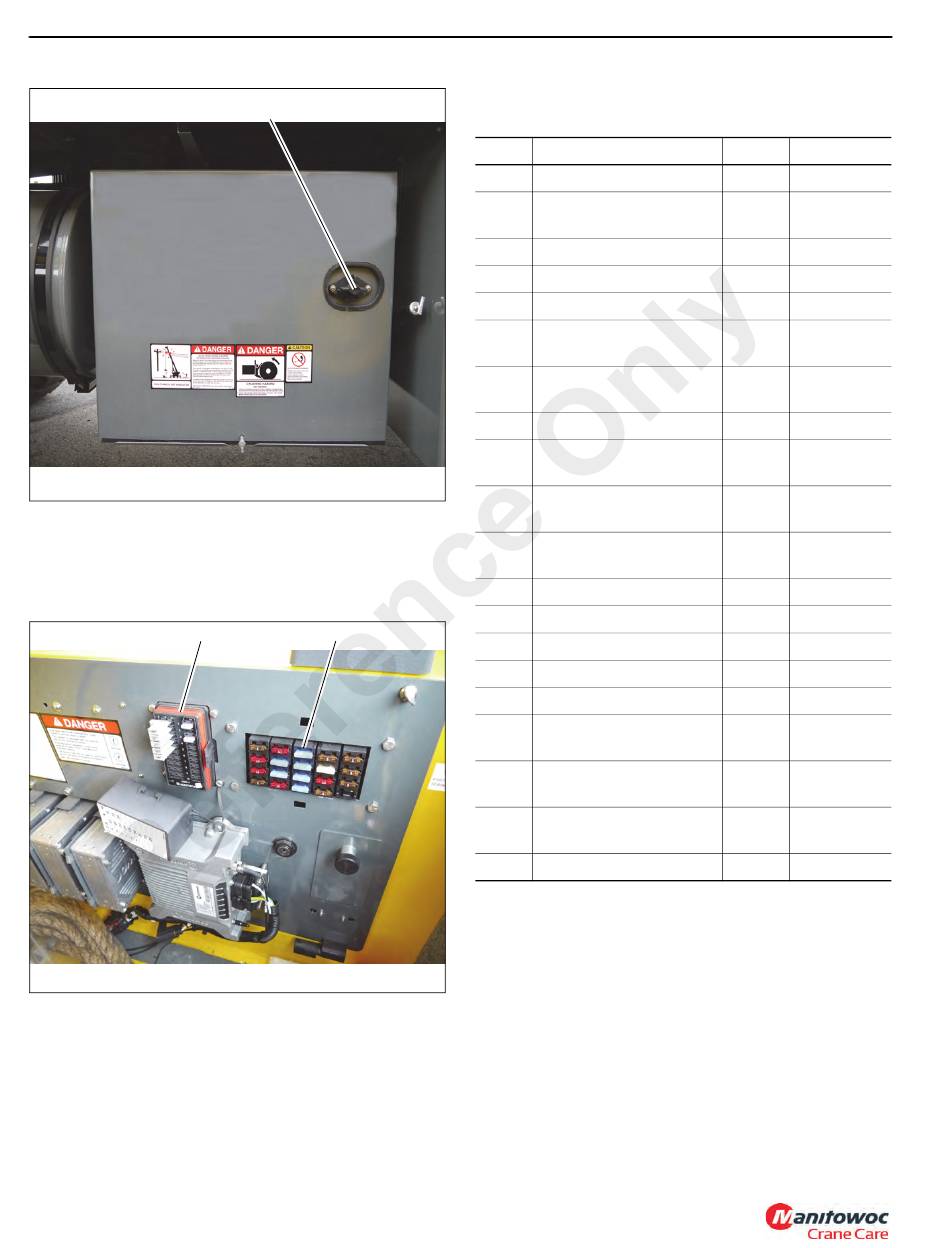

Fuses are located behind the seat in the cab (Figure 3-3)
and in the battery box fuse panel (3) (Figure 3-4) in the
battery box.
2
8091-1
3-2
1
FIGURE 3-2
1
FIGURE 3-3
Published 4-22-15, Control # 556-00
RT530E-2 SERVICE MANUAL
The following fuse assignments apply:
Table 3-1: Superstructure Cab Power Panel
Fuse Protects
F1 Dome Light
ACC Power Outlet/
F2
Heater Motor
F3 Work Lights
F4 Steering Column Power
F5 Key Switch Power
Turntable Module
F6
Battery Power
Master/Cab Slave
F7
Module Battery Power
F8 Skylight Wiper
Turntable Option Module
F9
Battery Power
Turntable Option Module
F10
Battery Power
Turntable Module
F11
Battery Power
F12 Diagnostic Tool Power
F13 Accessory Lights Power
F14 Oil Cooler
F15 Heater/AC Panel
F16 Circulating Fan
Joystick/Jogdial/
F17
Operator Display Power
Master/Cab Slave
F18
Module PCB Power
Turntable Module PCB
F19
Power
F20 Spare
Amps Location
5 (Figure 3-3)
10 (Figure 3-3)
10 (Figure 3-3)
5 (Figure 3-3)
10 (Figure 3-3)
15 (Figure 3-3)
15 (Figure 3-3)
10 (Figure 3-3)
15 (Figure 3-3)
15 (Figure 3-3)
15 (Figure 3-3)
15 (Figure 3-3)
15 (Figure 3-3)
25 (Figure 3-3)
10 (Figure 3-3)
5 (Figure 3-3)
5 (Figure 3-3)
5 (Figure 3-3)
5 (Figure 3-3)
(Figure 3-3)
